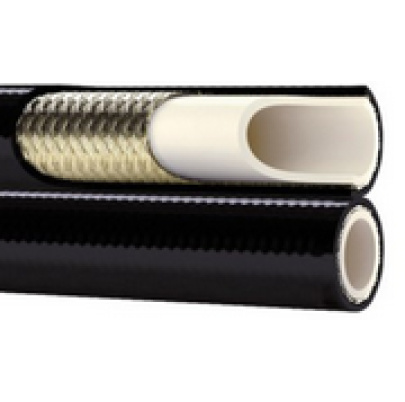

Termoplasticka hadica TWIN s ocelovym upletom SAE 100R7
Thermoplastic hose TWIN with steel reinforcement SAE 100R7
Termoplasticka hadica TWIN s ocelovym upletom SAE 100R7
- Kód produktu: TWHO
Thermoplastic hose TWIN with steel reinforcement SAE 100R7
Termoplasticka hadica TWIN s ocelovym upletom SAE 100R7
Zlozenie hadice:
Dusa:termoplasticky polyester
Vystuz: jeden ocelovy uplet
Obal: Polyurethan
Pracovna teplota:-40°C to +100°C
Vyuzitie: hadicka pre vodu, vzduch a tekutiny
| Code THO | DN Inside I.D. | Inside | Braid | Outside O.D. | Working pressure | Burst pressure | Bend radius | Weight | ||
| DN vnútorný priemer |
Vnútorný priemer |
Výstuž |
Vonkajší priemer |
Pracovný tlak |
Poruch. tlak |
Polom. ohybu |
Hmot. | |||
| mm | size | inch | mm | mm | mm | bar | bar | mm | kg/m | |
| 12782 | 6 | -4 | 1/4 | 6,4 | 11,6 | 310 | 1240 | 76 | 0,33 | |
| 12783 | 10 | -6 | 3/8 | 9,8 | 15,5 | 225 | 900 | 133 | 0,46 | |
