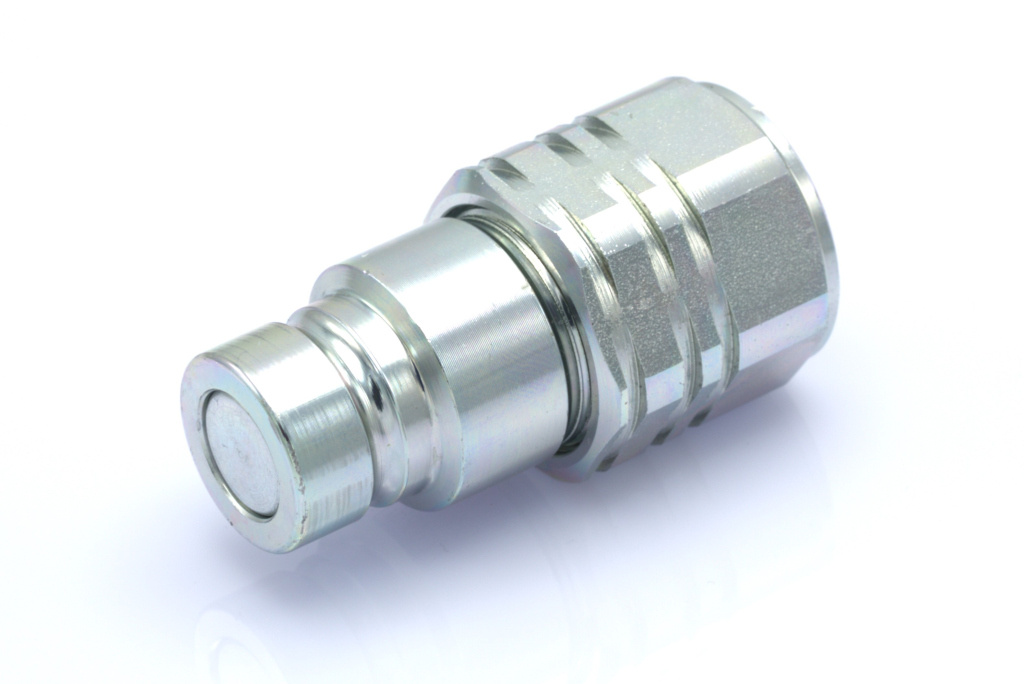

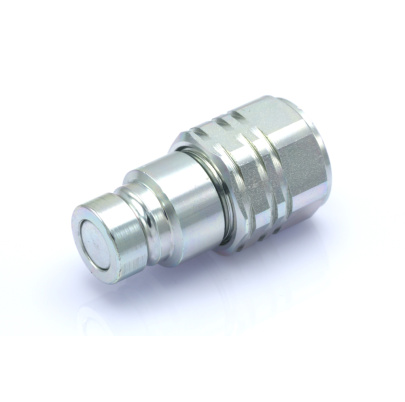

Hydraulicka rychlospojka CPL rovne celo samec
Hydraulicka rychlospojka CPL rovne celo samec ARGUS, quick coupling ARGUS
- Kód produktu: CPLRCSAMECARG
Hydraulicka rychlospojka CPL rovne celo samec
| Code | DN | Z | L | Working pressure | Burst pressure | A | CH | Name | ||
| DN | Z | L |
Pracovný tlak |
Poruch. tlak |
A | CH | Nazov | |||
| mm | size | inch | mm | bar | bar | mm | mm | |||
| 7357 | 6 | -4 | 1/4 | 1/4 | 50,5 | 350 | 1400 | 16,2 | 20 | Hydraulicka rychlospojka CPL rovne celo samec DN6 G1/4 |
| 118 | 10 | -6 | 3/8 | 3/8 | 64 | 350 | 1400 | 19,7 | 27 | Hydraulicka rychlospojka CPL rovne celo samec DN10 G3/8 |
| 119 | 10 | -6 | 3/8 | 1/2 | 64 | 350 | 1400 | 19,7 | 27 | Hydraulicka rychlospojka CPL rovne celo samec DN10 G1/2 |
| 3697 | 13 | -8 | 1/2 | 1/2 | 68 | 350 | 1400 | 24,6 | 32 | Hydraulicka rychlospojka CPL rovne celo samec DN13 G1/2 |
| 7358 | 13 | -8 | 1/2 | 3/4 | 68 | 350 | 1400 | 24,6 | 32 | Hydraulicka rychlospojka CPL rovne celo samec DN13 G3/4 |
| 120 | 19 | -12 | 3/4 | 1 | 85 | 350 | 1400 | 29,9 | 42 | Hydraulicka rychlospojka CPL rovne celo samec DN19 G1 |
