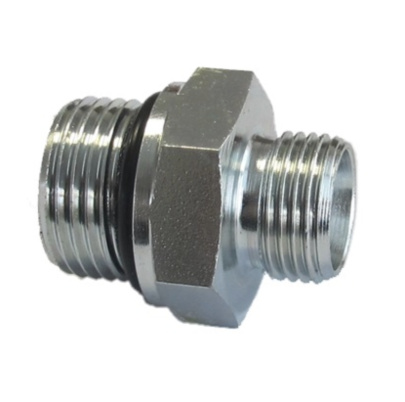

Hrdlo JIC (UNF) o-kruzok /Metrika
Hrdlo JIC (UNF) o-kruzok /Metrika Straight coupling JIC (UNF) o-ring /Metric
- Kód produktu: HJOM

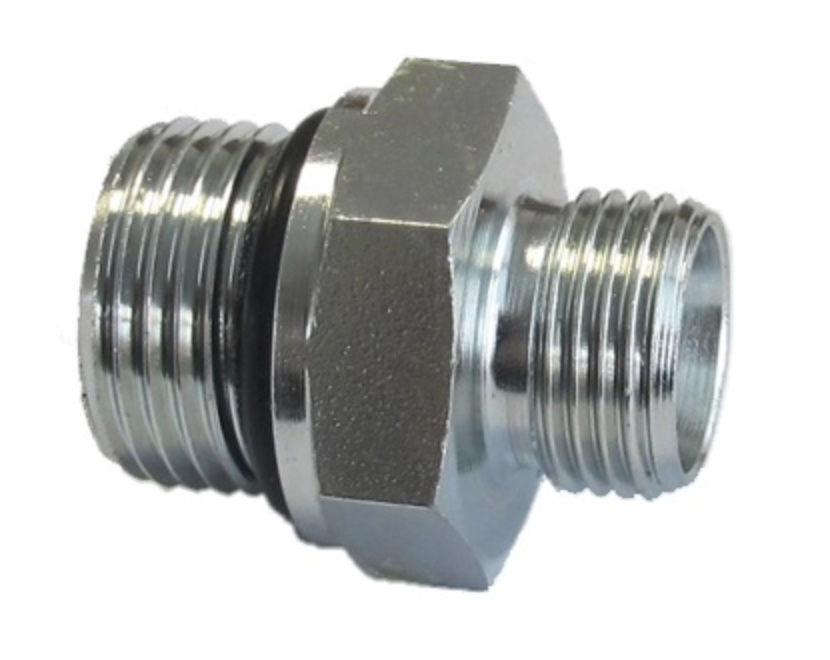

Hrdlo JIC (UNF) o-kruzok /Metrika
Straight coupling JIC (UNF) o-ring /Metric
| Kod/Code | Zavit F2 | Zavit F1 | T (mm) | H (mm) | L1 (mm) | L2 (mm) | L3 (mm) | Oznacenie/Description |
| 30256 | 7/8 | M18x1,5 | 12 | 27 | 12,7 | 14,3 | 21,3 | Hrdlo JIC 7/8 / M18x1,5 12L |
| 30257 | 7/8 | M30x2 | 22 | 32 | 12,7 | 16,8 | 24,3 | Hrdlo JIC 7/8 / M30x2 22L |
| 30258 | 1_1/16 | M36x2 | 28 | 41 | 15,0 | 17,5 | 25,0 | Hrdlo JIC 1_1/16 / M36x2 28L |
| 30259 | 1_1/16 | M30x2 | 20 | 32 | 15,0 | 20,5 | 31,0 | Hrdlo JIC 1_1/16 / M30x2 20S |
