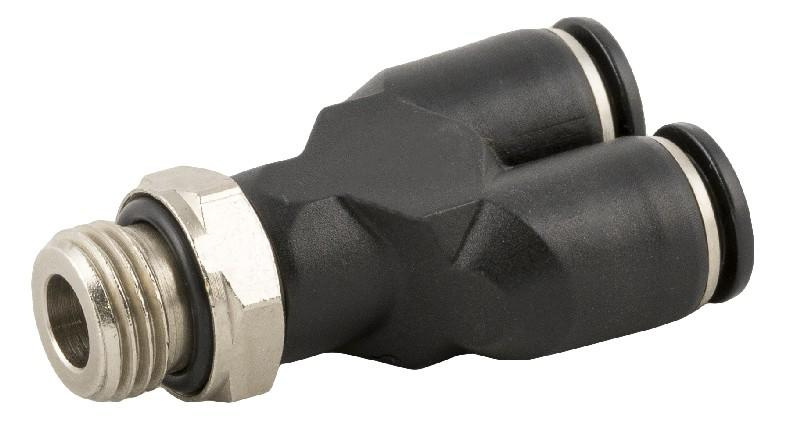

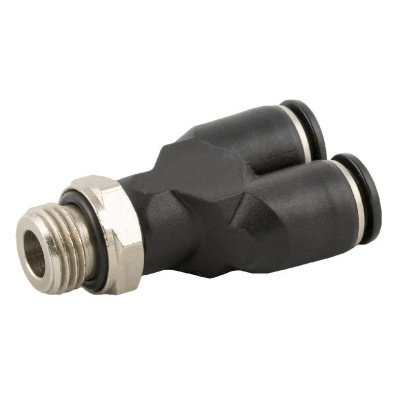

Ypsilon spojka so zavitom
Ypsilon spojka so zavitom ORIENTING Y MALE ADAPTOR (PARALLEL)
- Kód produktu: YSSZ
Ypsilon spojka so zavitom
ORIENTING Y MALE ADAPTOR (PARALLEL)

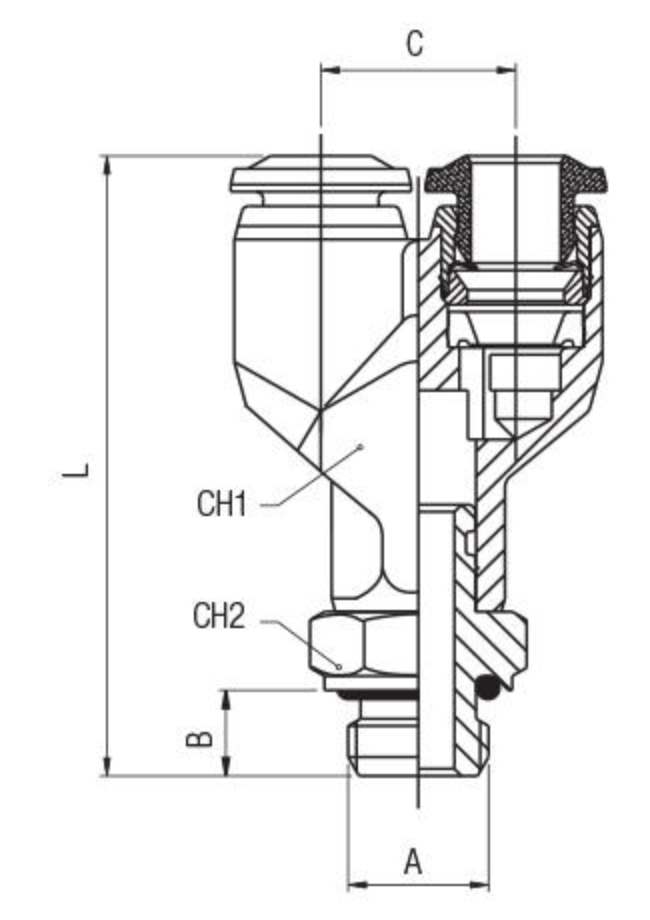

| Kod | Trubka (mm) | Zavit A | B (mm) | C (mm) | L (mm) | CH1 (mm) | CH2 (mm) | Balenie (ks) | Oznacenie |
| Code | Pipe (mm) | Thread A | B (mm) | C (mm) | L (mm) | CH1 (mm) | CH2 (mm) | Packed (pcs) | Description |
| 38047 | 6 | 1/8 | 6,0 | 13,5 | 43,5 | 12,0 | 13,0 | 10 | Ypsilon spojka so zavitom DN06 / G1/8 |
| 38048 | 8 | 1/8 | 6,0 | 15,5 | 47,0 | 14,0 | 13,0 | 10 | Ypsilon spojka so zavitom DN08 / G1/8 |
| 30389 | 8 | 3/8 | 9,0 | 15,5 | 52,0 | 14,0 | 20,0 | 10 | Ypsilon spojka so zavitom DN08 / G3/8 |
| 30390 | 10 | 3/8 | 9,0 | 19,0 | 59,5 | 17,0 | 20,0 | 10 | Ypsilon spojka so zavitom DN10 / G3/8 |
