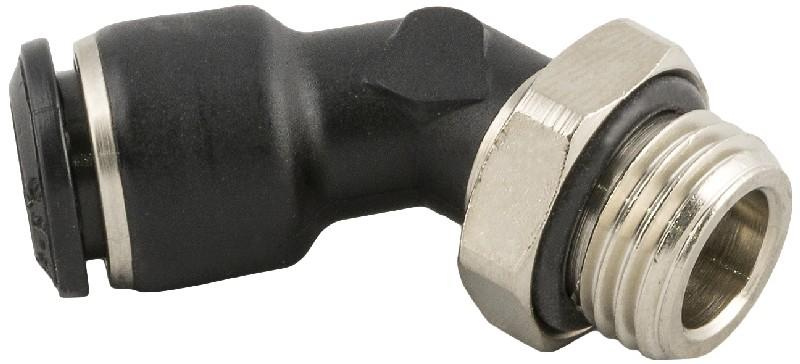

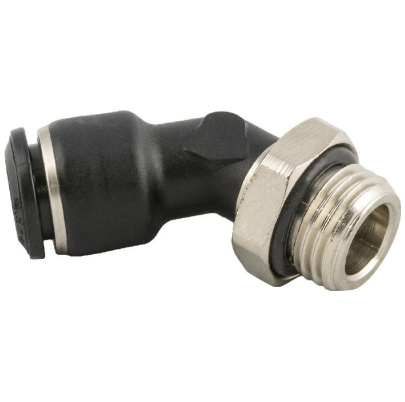

L 45 spojka so zavitom
L 45 kovova spojka so zavitom 45° ORIENTING ELBOW MALE ADAPTOR (PARALLEL)
- Kód produktu: L45KSZ
L 45 spojka so zavitom
45° ORIENTING ELBOW MALE ADAPTOR (PARALLEL)

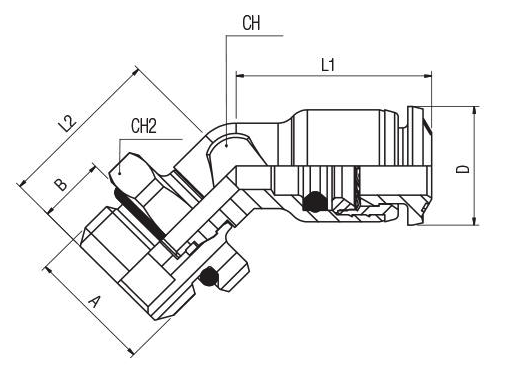

| Kod | Trubka (mm) | Zavit A | B (mm) | L1 (mm) | L2 (mm) | CH1 (mm) | CH2 (mm) | D (mm) | Balenie (ks) | Oznacenie |
| Code | Pipe (mm) | Thread A | B (mm) | L1 (mm) | L2 (mm) | CH1 (mm) | CH2 (mm) | D (mm) | Packed (pcs) | Description |
| 30388 | 10 | 1/4 | 7,1 | 26,5 | 22,8 | 13,0 | 16,0 | 17,0 | 10 | L 45 spojka so zavitom DN10 / G1/4 |
| 30387 | 12 | 3/8 | 8,1 | 30,0 | 23,6 | 16,0 | 20,0 | 20,0 | 10 | L 45 spojka so zavitom DN12 / G3/8 |
