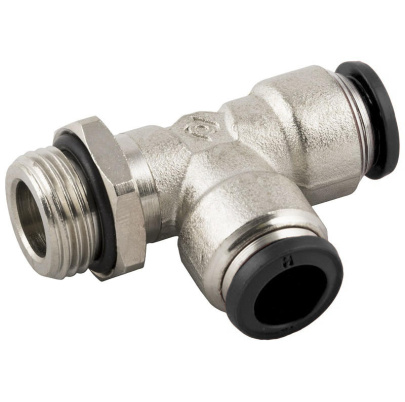

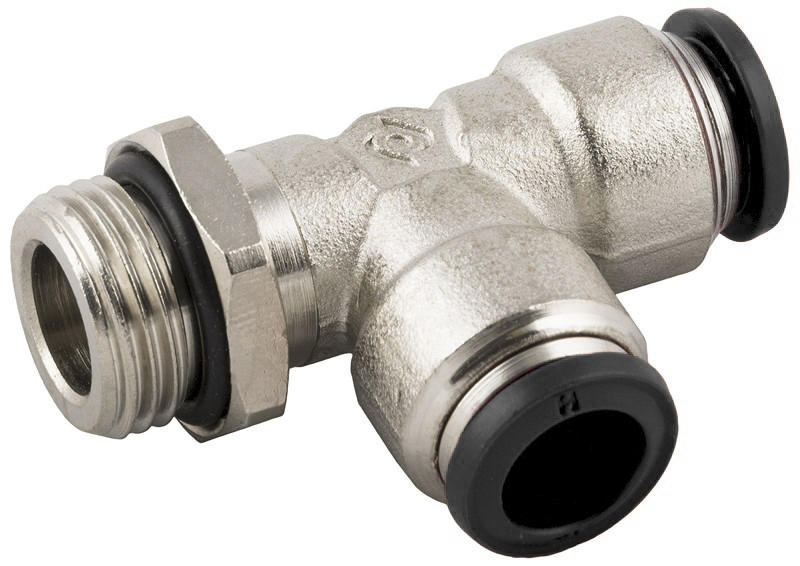

T kovova spojka so zavitom zboku
T kovova spojka so zavitom AIGNEP Tee coupling with thread AIGNEP
- Kód produktu: 5022600
T kovova spojka so zavitom zboku
Tee coupling with thread

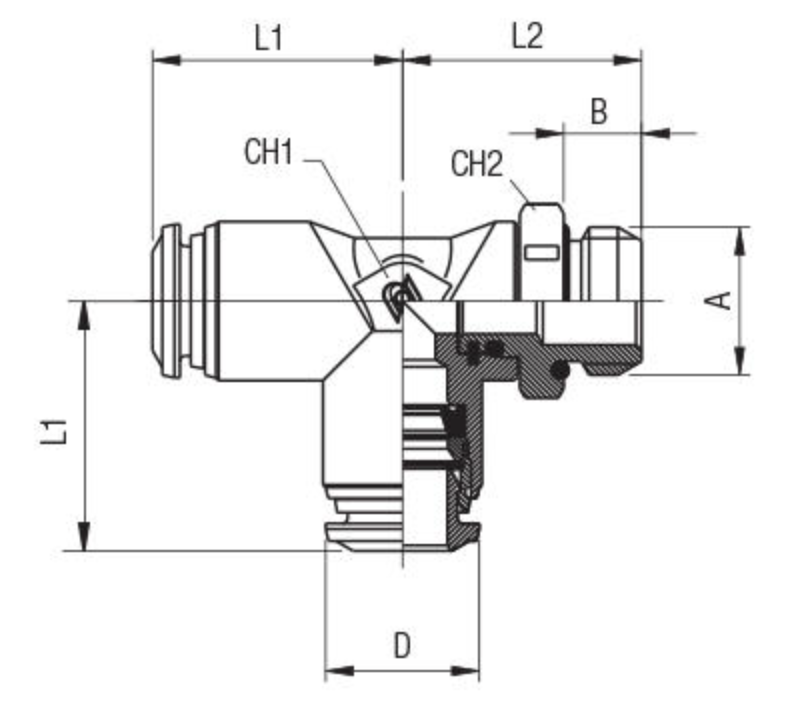

| Kod | Trubka (mm) | Zavit A | B (mm) | L1 (mm) | L2 (mm) | CH1 (mm) | CH2 (mm) | D (mm) | Balenie (ks) | Oznacenie |
| Code | Pipe (mm) | Thread A | B (mm) | L1 (mm) | L2 (mm) | CH1 (mm) | CH2 (mm) | D (mm) | Packed (pcs) | Description |
| 4 | 1/8 | 5,5 | 17,0 | 18,5 | 9,0 | 13,0 | 10,0 | 10 | T kovova spojka so zavitom zboku DN4 / G1/8 | |
| 4 | 1/4 | 7,0 | 18,0 | 20,0 | 9,0 | 16,0 | 10,0 | 10 | T kovova spojka so zavitom zboku DN4 / G1/4 | |
| 6 | M5 | 3,5 | 21,0 | 20,5 | 11,0 | 11,0 | 12,5 | 10 | T kovova spojka so zavitom zboku DN6 / M5 | |
| 30386 | 6 | 1/8 | 5,5 | 21,0 | 20,5 | 11,0 | 13,0 | 12,5 | 10 | T kovova spojka so zavitom zboku DN6 / G1/8 |
| 6 | 1/4 | 7,0 | 21,0 | 22,0 | 11,0 | 16,0 | 12,5 | 10 | T kovova spojka so zavitom zboku DN6 / G1/4 | |
| 8 | 1/8 | 5,5 | 22,5 | 23,5 | 13,0 | 13,0 | 14,5 | 10 | T kovova spojka so zavitom zboku DN8 / G1/8 | |
| 8 | 1/4 | 7,0 | 22,5 | 24,0 | 13,0 | 16,0 | 14,5 | 10 | T kovova spojka so zavitom zboku DN8 / G1/4 | |
| 8 | 3/8 | 8,0 | 22,5 | 26,0 | 13,0 | 20,0 | 14,5 | 10 | T kovova spojka so zavitom zboku DN8 / G3/8 | |
| 8 | 1/2 | 9,5 | 22,5 | 27,5 | 13,0 | 25,0 | 14,5 | 10 | T kovova spojka so zavitom zboku DN8 / G1/2 | |
| 10 | 1/4 | 7,0 | 26,5 | 27,5 | 14,0 | 16,0 | 17,5 | 10 | T kovova spojka so zavitom zboku DN10 / G1/4 | |
| 10 | 3/8 | 8,0 | 26,5 | 27,0 | 14,0 | 20,0 | 17,5 | 10 | T kovova spojka so zavitom zboku DN10 / G3/8 | |
| 10 | 1/2 | 9,5 | 26,5 | 28,5 | 14,0 | 25,0 | 17,5 | 10 | T kovova spojka so zavitom zboku DN10 / G1/2 | |
| 12 | 3/8 | 8,0 | 31,5 | 29,5 | 16,0 | 20,0 | 21,5 | 10 | T kovova spojka so zavitom zboku DN12 / G3/8 | |
| 12 | 1/2 | 9,5 | 31,5 | 31,0 | 16,0 | 25,0 | 21,5 | 10 | T kovova spojka so zavitom zboku DN12 / G1/2 |
