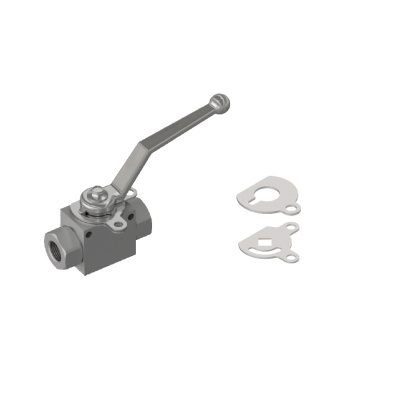

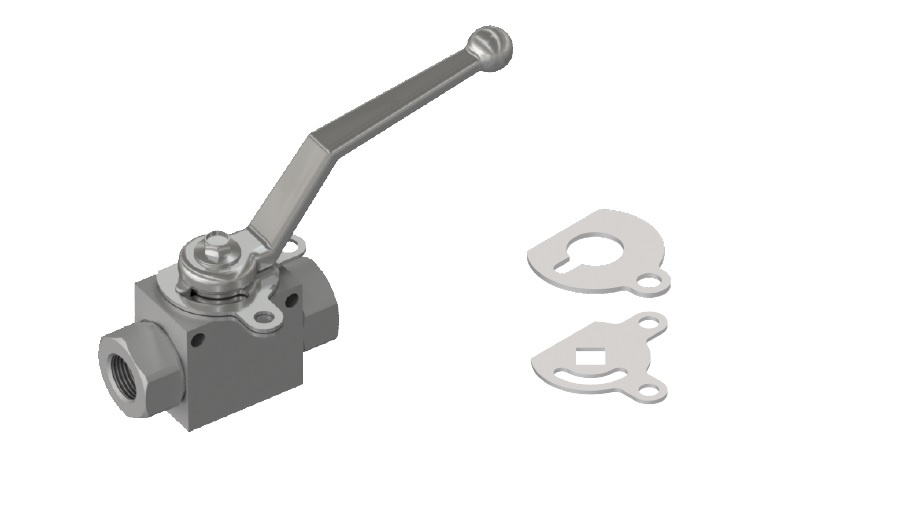

Hydraulicky 2 cestny gulovy ventil BSP uzamykatelny
Hydraulicky 2 cestny gulovy ventil BSP uzamykatelny Hydraulic ball ventil 2-way BSP locked
- Kód produktu: HGV2GU
Hydraulicky 2 cestny gulovy ventil BSP uzamykatelny
Hydraulic ball ventil 2-way BSP locked
| Kod | Zavit D | CH1 (mm) | L (mm) | A (mm) | B (mm) | K (mm) | H (mm) | J (mm) | C (mm) | Oznacenie |
| Code | Thread D | CH1 (mm) | L (mm) | A (mm) | B (mm) | K (mm) | H (mm) | J (mm) | C (mm) | Description |
| 19511 | 1/2 | 30 | 85,0 | 48,0 | 40 | 107,0 | 78 | 17,2 | 40 | Hydraulicky 2 cestny gulovy ventil uzamykatelny DN13 G1/2 500bar |
| 19512 | 3/4 | 41 | 97,0 | 62,5 | 55 | 178,0 | 128 | 22,7 | 55 | Hydraulicky 2 cestny gulovy ventil uzamykatelny DN20 G3/4 400bar |
| 19513 | 1 | 46 | 114,0 | 66,5 | 60 | 178,0 | 133 | 26,0 | 60 | Hydraulicky 2 cestny gulovy ventil uzamykatelny DN25 G1 350bar |
