BEL45 / BES45
hydraulická koncovka BEL45 BES45, hydraulicka koncovka BEL45 BES45, Hydraulická koncovka BEL45 BES45, Hydraulicka koncovka BEL45 BES45
- Kód produktu: BEL45BES45

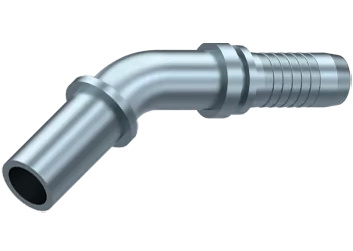

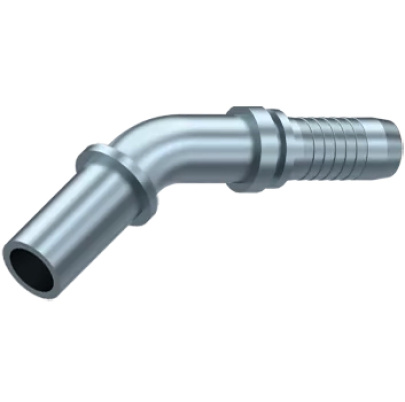

BEL BES 45 koleno, metrická trubka L.T. (BEL) a H.T. (BES)
BEL BES 45 elbow, metric standpipe L.T. (BEL) and H.T.(BES)
| 0134 BEL/S45 | Hadica / Hose | Trúbka T | Označenie | ||
| Kód/Code | inch | DN | Size | Tube T | Description |
| 01340506 | 3/16 | 05 | -3 | 6 | BEL 45 DN05 T6 |
| 01340508 | 3/16 | 05 | -3 | 8 | BES 45 DN05 T8 |
| 01340606 | 1/4 | 06 | -4 | 6 | BEL 45 DN06 T6 |
| 01340608 | 1/4 | 06 | -4 | 8 | BES 45 DN06 T8 |
| 01340610 | 1/4 | 06 | -4 | 10 | BES 45 DN06 T10 |
| 01340612 | 1/4 | 06 | -4 | 12 | BES 45 DN06 T12 |
| 01340808 | 5/16 | 08 | -5 | 08 | BES 45 DN08 T8 |
| 01340810 | 5/16 | 08 | -5 | 10 | BEL 45 DN08 T10 |
| 01340812 | 5/16 | 08 | -5 | 12 | BES 45 DN08 T12 |
| 01341010 | 3/8 | 10 | -6 | 10 | BEL 45 DN10 T10 |
| 01341012 | 3/8 | 10 | -6 | 12 | BEL 45 DN10 T12 |
| 01341014 | 3/8 | 10 | -6 | 14 | BES 45 DN10 T14 |
| 01341015 | 3/8 | 10 | -6 | 15 | BEL 45 DN10 T15 |
| 01341212 | 1/2 | 12 | -8 | 12 | BEL 45 DN12 T12 |
| 01341214 | 1/2 | 12 | -8 | 14 | BES 45 DN12 T14 |
| 01341215 | 1/2 | 12 | -8 | 15 | BEL 45 DN12 T15 |
| 01341216 | 1/2 | 12 | -8 | 16 | BES 45 DN12 T16 |
| 01341218 | 1/2 | 12 | -8 | 18 | BEL 45 DN12 T18 |
| 01341220 | 1/2 | 12 | -8 | 20 | BES 45 DN12 T20 |
| 01341618 | 5/8 | 16 | -10 | 18 | BEL 45 DN16 T18 |
| 01341620 | 5/8 | 16 | -10 | 20 | BES 45 DN16 T20 |
| 01341622 | 5/8 | 16 | -10 | 22 | BEL 45 DN16 T22 |
| 01342018 | 3/4 | 20 | -12 | 18 | BEL 45 DN20 T18 |
| 01342020 | 3/4 | 20 | -12 | 20 | BES 45 DN20 T20 |
| 01342022 | 3/4 | 20 | -12 | 22 | BEL 45 DN20 T22 |
| 01342025 | 3/4 | 20 | -12 | 25 | BES 45 DN20 T25 |
| 01342525 | 1 | 25 | -16 | 25 | BES 45 DN25 T25 |
| 01342528 | 1 | 25 | -16 | 28 | BEL 45 DN25 T28 |
| 01342530 | 1 | 25 | -16 | 30 | BES 45 DN25 T30 |
| 01342535 | 1 | 25 | -16 | 35 | BEL 45 DN25 T35 |
| 01343230 | 1 1/4 | 32 | -20 | 30 | BES 45 DN32 T30 |
| 01343235 | 1 1/4 | 32 | -20 | 35 | BEL 45 DN32 T35 |
| 01343238 | 1 1/4 | 32 | -20 | 38 | BES 45 DN32 T38 |
| 01344038 | 1 1/2 | 40 | -24 | 38 | BES 45 DN40 T38 |
| 01344042 | 1 1/2 | 40 | -24 | 42 | BEL 45 DN40 T42 |
