BEL90 / BES90
hydraulická koncovka BEL90 BES90, hydraulicka koncovka BEL90 BES90, Hydraulická koncovka BEL90 BES90, Hydraulicka koncovka BEL90 BES90
- Kód produktu: BEL90BES90

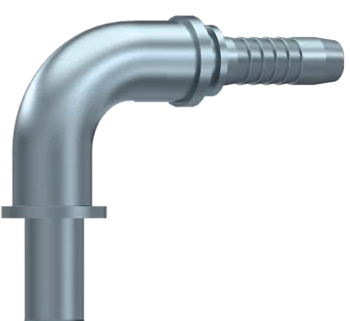

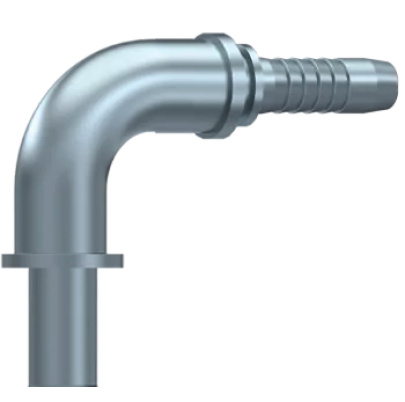

BEL BES 90 koleno, metrická trubka L.T. (BEL) a H.T. (BES)
BEL BES 90 elbow, metric standpipe L.T. (BEL) and H.T.(BES)
| 0139 BEL/S90 | Hadica / Hose | Trúbka T | Označenie | ||
| Kód/Code | inch | DN | Size | Tube T | Description |
| 01390506 | 3/16 | 05 | -3 | 6 | BEL 90 DN05 T6 |
| 01390508 | 3/16 | 05 | -3 | 8 | BES 90 DN05 T8 |
| 01390606 | 1/4 | 06 | -4 | 6 | BEL 90 DN06 T6 |
| 01390608 | 1/4 | 06 | -4 | 8 | BES 90 DN06 T8 |
| 01390610 | 1/4 | 06 | -4 | 10 | BES 90 DN06 T10 |
| 01390612 | 1/4 | 06 | -4 | 12 | BES 90 DN06 T12 |
| 01390808 | 5/16 | 08 | -5 | 08 | BES 90 DN08 T8 |
| 01390810 | 5/16 | 08 | -5 | 10 | BEL 90 DN08 T10 |
| 01390812 | 5/16 | 08 | -5 | 12 | BES 90 DN08 T12 |
| 01391010 | 3/8 | 10 | -6 | 10 | BEL 90 DN10 T10 |
| 01391012 | 3/8 | 10 | -6 | 12 | BEL 90 DN10 T12 |
| 01391014 | 3/8 | 10 | -6 | 14 | BES 90 DN10 T14 |
| 01391015 | 3/8 | 10 | -6 | 15 | BEL 90 DN10 T15 |
| 01391212 | 1/2 | 12 | -8 | 12 | BEL 90 DN12 T12 |
| 01391214 | 1/2 | 12 | -8 | 14 | BES 90 DN12 T14 |
| 01391215 | 1/2 | 12 | -8 | 15 | BEL 90 DN12 T15 |
| 01391216 | 1/2 | 12 | -8 | 16 | BES 90 DN12 T16 |
| 01391218 | 1/2 | 12 | -8 | 18 | BEL 90 DN12 T18 |
| 01391220 | 1/2 | 12 | -8 | 20 | BES 90 DN12 T20 |
| 01391618 | 5/8 | 16 | -10 | 18 | BEL 90 DN16 T18 |
| 01391620 | 5/8 | 16 | -10 | 20 | BES 90 DN16 T20 |
| 01391622 | 5/8 | 16 | -10 | 22 | BEL 90 DN16 T22 |
| 01392018 | 3/4 | 20 | -12 | 18 | BEL 90 DN20 T18 |
| 01392020 | 3/4 | 20 | -12 | 20 | BES 90 DN20 T20 |
| 01392022 | 3/4 | 20 | -12 | 22 | BEL 90 DN20 T22 |
| 01392025 | 3/4 | 20 | -12 | 25 | BES 90 DN20 T25 |
| 01392525 | 1 | 25 | -16 | 25 | BES 90 DN25 T25 |
| 01392528 | 1 | 25 | -16 | 28 | BEL 90 DN25 T28 |
| 01392530 | 1 | 25 | -16 | 30 | BES 90 DN25 T30 |
| 01392535 | 1 | 25 | -16 | 35 | BEL 90 DN25 T35 |
| 01393230 | 1 1/4 | 32 | -20 | 30 | BES 90 DN32 T30 |
| 01393235 | 1 1/4 | 32 | -20 | 35 | BEL 90 DN32 T35 |
| 01393238 | 1 1/4 | 32 | -20 | 38 | BES 90 DN32 T38 |
| 01394038 | 1 1/2 | 40 | -24 | 38 | BES 90 DN40 T38 |
| 01394042 | 1 1/2 | 40 | -24 | 42 | BEL 90 DN40 T42 |
