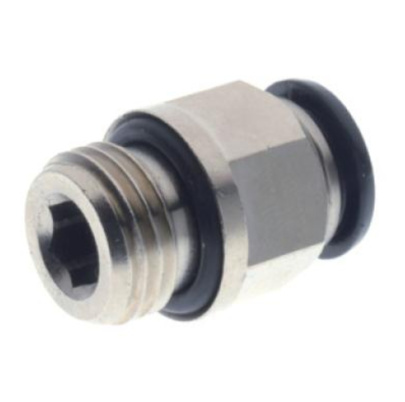

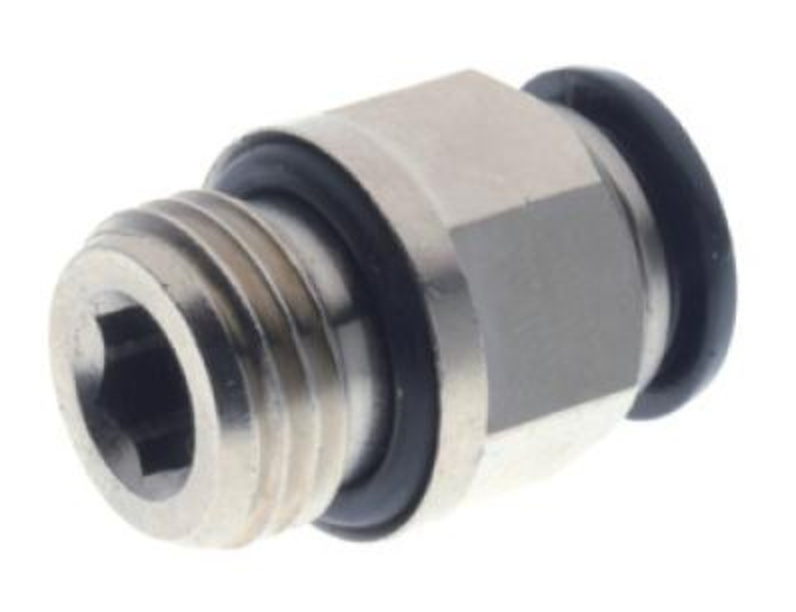

Mosadzna spojka so zavitom
Mosadzna spojka so zavitom AIGNEP Straight quick coupling with thread AIGNEP
- Kód produktu: 5002
Mosadzna spojka so zavitom
Straight quick coupling with thread

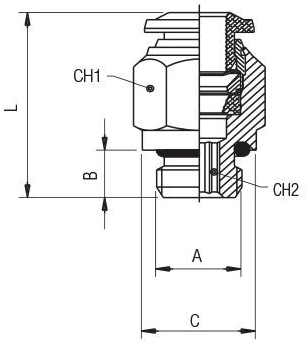

| Kod | Trubka (mm) | Zavit A | B (mm) | C (mm) | L (mm) | CH1 (mm) | CH2 (mm) | Balenie (ks) | Oznacenie |
| Code | Pipe (mm) | Thread A | B (mm) | C (mm) | L (mm) | CH1 (mm) | CH2 (mm) | Packed (pcs) | Description |
| 9013 | 4 | M5 | 4,0 | 8,0 | 21,0 | 10,0 | 2,0 | 10 | Mosadzna spojka so zavitom DN04 / M5 |
| 9015 | 4 | 1/8 | 6,0 | 13,0 | 20,0 | 10,0 | 3,0 | 10 | Mosadzna spojka so zavitom DN04 / G1/8 |
| 10108 | 5 | M5 | 4,0 | 8,0 | 23,5 | 12,0 | 2,0 | 10 | Mosadzna spojka so zavitom DN05 / M5 |
| 10254 | 5 | 1/8 | 6,0 | 13,0 | 22,0 | 12,0 | 4,0 | 10 | Mosadzna spojka so zavitom DN05 / G1/8 |
| 9014 | 6 | M5 | 4,0 | 10,0 | 24,5 | 13,0 | 2,0 | 10 | Mosadzna spojka so zavitom DN06 / M5 |
| 16829 | 6 | M12x1,5 | 8,0 | 15,0 | 23,5 | 13,0 | 4,0 | 10 | Mosadzna spojka so zavitom DN06 / M12x1,5 |
| 12878 | 6 | 1/8 | 6,0 | 13,0 | 23,5 | 13,0 | 4,0 | 10 | Mosadzna spojka so zavitom DN06 / G1/8 |
| 3479 | 6 | 1/4 | 8,0 | 16,0 | 23,5 | 13,0 | 4,0 | 10 | Mosadzna spojka so zavitom DN06 / G1/4 |
| 3480 | 6 | 3/8 | 9,0 | 20,0 | 25,0 | 13,0 | 4,0 | 10 | Mosadzna spojka so zavitom DN06 / G3/8 |
| 12900 | 6 | 1/2 | 10,0 | 25,0 | 27,0 | 13,0 | 4,0 | 10 | Mosadzna spojka so zavitom DN06 / G1/2 |
| 9017 | 8 | 1/8 | 6,0 | 13,0 | 25,0 | 14,0 | 5,0 | 10 | Mosadzna spojka so zavitom DN08 / G1/8 |
| 3481 | 8 | 1/4 | 8,0 | 16,0 | 23,0 | 14,0 | 6,0 | 10 | Mosadzna spojka so zavitom DN08 / G1/4 |
| 3482 | 8 | 3/8 | 9,0 | 20,0 | 24,0 | 14,0 | 6,0 | 10 | Mosadzna spojka so zavitom DN08 / G3/8 |
| 10310 | 8 | 1/2 | 10,0 | 25,0 | 26,5 | 14,0 | 6,0 | 10 | Mosadzna spojka so zavitom DN08 / G1/2 |
| 3483 | 10 | 1/4 | 8,0 | 16,0 | 30,5 | 17,0 | 6,0 | 10 | Mosadzna spojka so zavitom DN10 / G1/4 |
| 3484 | 10 | 3/8 | 9,0 | 20,0 | 27,5 | 17,0 | 8,0 | 10 | Mosadzna spojka so zavitom DN10 / G3/8 |
| 3538 | 10 | 1/2 | 10,0 | 25,0 | 27,0 | 17,0 | 8,0 | 10 | Mosadzna spojka so zavitom DN10 / G1/2 |
| 4168 | 12 | 1/4 | 8,0 | 16,0 | 34,5 | 20,0 | 6,0 | 10 | Mosadzna spojka so zavitom DN12 / G1/4 |
| 3485 | 12 | 3/8 | 9,0 | 20,0 | 34,0 | 20,0 | 8,0 | 10 | Mosadzna spojka so zavitom DN12 / G3/8 |
| 3486 | 12 | 1/2 | 9,6 | 25,0 | 31,0 | 22,0 | 10,0 | 10 | Mosadzna spojka so zavitom DN12 / G1/2 |
| 30408 | 14 | 1/2 | 9,6 | 25,0 | 32,0 | 22,0 | 11,0 | 10 | Mosadzna spojka so zavitom DN14 / G1/2 |
