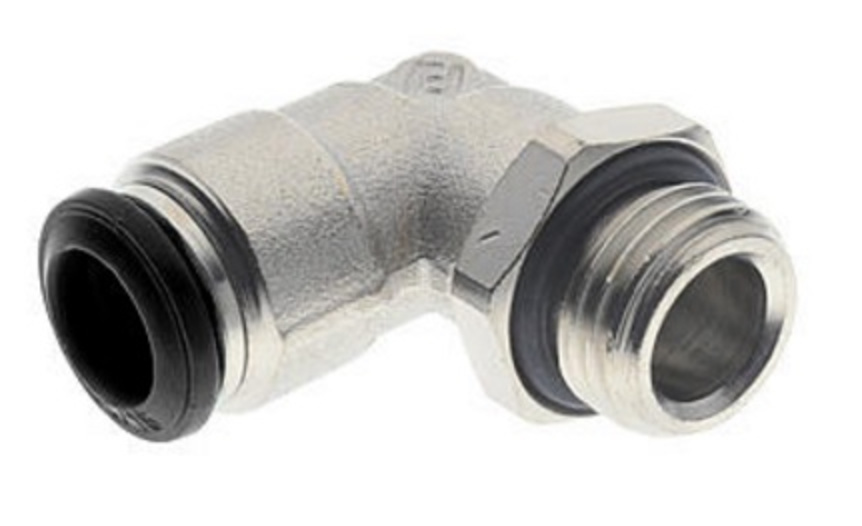

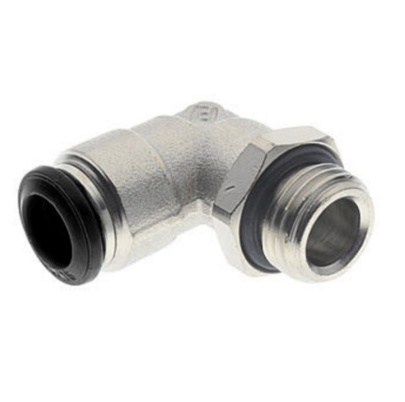

L kovova spojka so zavitom
L kovova spojka so zavitom AIGNEP Elbow coupling with thread AIGNEP
- Kód produktu: 5011600
L kovova spojka so zavitom
Elbow coupling with thread

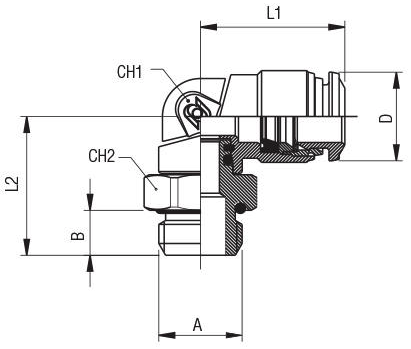

| Kod | Trubka (mm) | Zavit A | B (mm) | L1 (mm) | L2 (mm) | CH1 (mm) | CH2 (mm) | D (mm) | Balenie (ks) | Oznacenie |
| Code | Pipe (mm) | Thread A | B (mm) | L1 (mm) | L2 (mm) | CH1 (mm) | CH2 (mm) | D (mm) | Packed (pcs) | Description |
| 9018 | 4 | M5 | 3,5 | 18,0 | 17,5 | 9,0 | 8,0 | 10,0 | 10 | L kovova spojka so zavitom DN4 / M5 |
| 9023 | 4 | 1/8 | 5,5 | 18,0 | 18,0 | 9,0 | 13,0 | 10,0 | 10 | L kovova spojka so zavitom DN4 / G1/8 |
| 10629 | 4 | 1/4 | 7,0 | 18,0 | 18,0 | 9,0 | 16,0 | 10,0 | 10 | L kovova spojka so zavitom DN4 / G1/4 |
| 9019 | 6 | M5 | 3,5 | 21,0 | 20,0 | 11,0 | 11,0 | 12,5 | 10 | L kovova spojka so zavitom DN6 / M5 |
| 3487 | 6 | M12x1,5 | 7,5 | 20,0 | 22,0 | 11,0 | 16,0 | 12,5 | 10 | L kovova spojka so zavitom DN6 / M12x1,5 |
| 9024 | 6 | 1/8 | 5,5 | 21,0 | 20,0 | 11,0 | 13,0 | 12,5 | 10 | L kovova spojka so zavitom DN6 / G1/8 |
| 3488 | 6 | 1/4 | 7,0 | 21,0 | 21,5 | 11,0 | 16,0 | 12,5 | 10 | L kovova spojka so zavitom DN6 / G1/4 |
| 9025 | 8 | 1/8 | 5,5 | 22,5 | 22,5 | 12,0 | 13,0 | 14,5 | 10 | L kovova spojka so zavitom DN8 / G1/8 |
| 3489 | 8 | 1/4 | 7,0 | 22,5 | 23,0 | 12,0 | 16,0 | 14,5 | 10 | L kovova spojka so zavitom DN8 / G1/4 |
| 3490 | 8 | 3/8 | 8,0 | 22,5 | 25,0 | 12,0 | 20,0 | 14,5 | 10 | L kovova spojka so zavitom DN8 / G3/8 |
| 10749 | 8 | 1/2 | 9,5 | 22,5 | 26,5 | 12,0 | 25,0 | 14,5 | 10 | L kovova spojka so zavitom DN8 / G1/2 |
| 4180 | 10 | 1/4 | 7,0 | 26,5 | 25,5 | 14,0 | 16,0 | 17,5 | 10 | L kovova spojka so zavitom DN10 / G1/4 |
| 3491 | 10 | 3/8 | 8,0 | 26,5 | 25,0 | 14,0 | 20,0 | 17,5 | 10 | L kovova spojka so zavitom DN10 / G3/8 |
| 4388 | 10 | 1/2 | 9,5 | 26,5 | 26,5 | 14,0 | 25,0 | 17,5 | 10 | L kovova spojka so zavitom DN10 / G1/2 |
| 4389 | 12 | 1/4 | 8,0 | 31,5 | 27,5 | 16,0 | 20,0 | 21,5 | 10 | L kovova spojka so zavitom DN12 / G1/4 |
| 3492 | 12 | 3/8 | 8,0 | 31,5 | 27,0 | 16,0 | 20,0 | 21,5 | 10 | L kovova spojka so zavitom DN12 / G3/8 |
| 3493 | 12 | 1/2 | 9,5 | 31,5 | 28,5 | 16,0 | 25,0 | 21,5 | 10 | L kovova spojka so zavitom DN12 / G1/2 |
| 30409 | 14 | 3/8 | 8,0 | 31,5 | 27,5 | 16,0 | 20,0 | 21,5 | 10 | L kovova spojka so zavitom DN14 / G3/8 |
| 30410 | 14 | 1/2 | 9,5 | 31,5 | 29,0 | 16,0 | 25,0 | 21,5 | 10 | L kovova spojka so zavitom DN14 / G1/2 |
