BEL/BES
hydraulická koncovka BEL BES, hydraulicka koncovka BEL BES, Hydraulická koncovka BEL BES, Hydraulicka koncovka BEL BES
- Kód produktu: BELBES

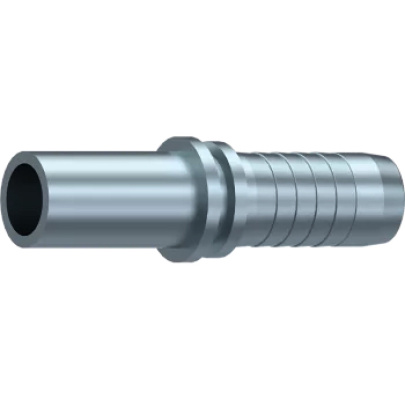

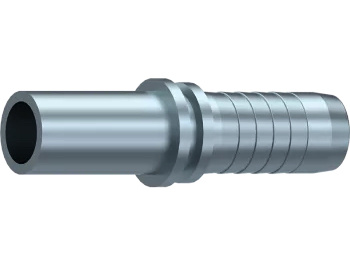

BEL BES priame, metrická trubka L.T. (BEL) a H.T. (BES)
BEL BES straight, metric standpipe L.T. (BEL) and H.T.(BES)
| 0130 BEL/S | Hadica / Hose | Trúbka T | Označenie | ||
| Kód/Code | inch | DN | Size | Tube T | Description |
| 01300506 | 3/16 | 05 | -3 | 6 | BEL DN05 T6 |
| 01300508 | 3/16 | 05 | -3 | 8 | BES DN05 T8 |
| 01300606 | 1/4 | 06 | -4 | 6 | BEL DN06 T6 |
| 01300608 | 1/4 | 06 | -4 | 8 | BES DN06 T8 |
| 01300610 | 1/4 | 06 | -4 | 10 | BES DN06 T10 |
| 01300612 | 1/4 | 06 | -4 | 12 | BES DN06 T12 |
| 01300808 | 5/16 | 08 | -5 | 08 | BES DN08 T8 |
| 01300810 | 5/16 | 08 | -5 | 10 | BEL DN08 T10 |
| 01300812 | 5/16 | 08 | -5 | 12 | BES DN08 T12 |
| 01301010 | 3/8 | 10 | -6 | 10 | BEL DN10 T10 |
| 01301012 | 3/8 | 10 | -6 | 12 | BEL DN10 T12 |
| 01301014 | 3/8 | 10 | -6 | 14 | BES DN10 T14 |
| 01301015 | 3/8 | 10 | -6 | 15 | BEL DN10 T15 |
| 01301212 | 1/2 | 12 | -8 | 12 | BEL DN12 T12 |
| 01301214 | 1/2 | 12 | -8 | 14 | BES DN12 T14 |
| 01301215 | 1/2 | 12 | -8 | 15 | BEL DN12 T15 |
| 01301216 | 1/2 | 12 | -8 | 16 | BES DN12 T16 |
| 01301218 | 1/2 | 12 | -8 | 18 | BEL DN12 T18 |
| 01301220 | 1/2 | 12 | -8 | 20 | BES DN12 T20 |
| 01301618 | 5/8 | 16 | -10 | 18 | BEL DN16 T18 |
| 01301620 | 5/8 | 16 | -10 | 20 | BES DN16 T20 |
| 01301622 | 5/8 | 16 | -10 | 22 | BEL DN16 T22 |
| 01302018 | 3/4 | 20 | -12 | 18 | BEL DN20 T18 |
| 01302020 | 3/4 | 20 | -12 | 20 | BES DN20 T20 |
| 01302022 | 3/4 | 20 | -12 | 22 | BEL DN20 T22 |
| 01302025 | 3/4 | 20 | -12 | 25 | BES DN20 T25 |
| 01302525 | 1 | 25 | -16 | 25 | BES DN25 T25 |
| 01302528 | 1 | 25 | -16 | 28 | BEL DN25 T28 |
| 01302530 | 1 | 25 | -16 | 30 | BES DN25 T30 |
| 01302535 | 1 | 25 | -16 | 35 | BEL DN25 T35 |
| 01303230 | 1 1/4 | 32 | -20 | 30 | BES DN32 T30 |
| 01303235 | 1 1/4 | 32 | -20 | 35 | BEL DN32 T35 |
| 01303238 | 1 1/4 | 32 | -20 | 38 | BES DN32 T38 |
| 01304038 | 1 1/2 | 40 | -24 | 38 | BES DN40 T38 |
| 01304042 | 1 1/2 | 40 | -24 | 42 | BEL DN40 T42 |
