DKOL45
hydraulicka koncovka DKOL45, Hydraulicka koncovka DKOL45
- Kód produktu: DKOL45

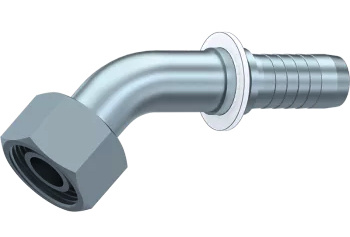

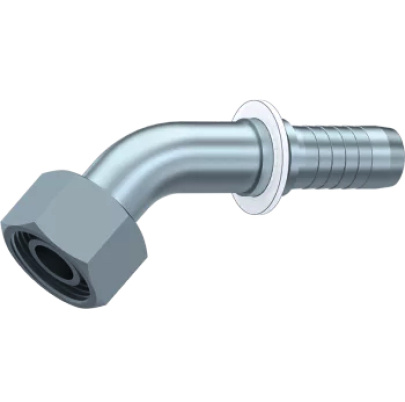

DKOL koleno 45, metricky zavit vnutorny 24 kuzel, lahka rada s O-kruzkom
DKOL elbow 45, female metric 24 cone seat, light series L.T. with O-ring
| 0114 DKOL45 | Hadica / Hose | Zavit | TR DIN | Kluc E | Oznacenie | ||
| Kod/Code | inch | DN | Size | Thread | DIN PIPE | Hex E | Description |
| 695 | 1/4" | 6 | -4 | M12x1,5 | 6 | 14 | DKOL 45 DN06 M12x1,5 |
| 696 | 1/4" | 6 | -4 | M14x1,5 | 8 | 17 | DKOL 45 DN06 M14x1,5 |
| 1821 | 1/4" | 6 | -4 | M16x1,5 | 10 | 19 | DKOL 45 DN06 M16x1,5 |
| 1822 | 1/4" | 6 | -4 | M18x1,5 | 12 | 22 | DKOL 45 DN06 M18x1,5 |
| 697 | 5/16" | 8 | -5 | M16x1,5 | 10 | 19 | DKOL 45 DN08 M16x1,5 |
| 1823 | 5/16" | 8 | -5 | M18x1,5 | 12 | 22 | DKOL 45 DN08 M18x1,5 |
| 1824 | 3/8" | 10 | -6 | M16x1,5 | 10 | 19 | DKOL 45 DN10 M16x1,5 |
| 698 | 3/8" | 10 | -6 | M18x1,5 | 12 | 22 | DKOL 45 DN10 M18x1,5 |
| 1825 | 3/8" | 10 | -6 | M22x1,5 | 15 | 27 | DKOL 45 DN10 M22x1,5 |
| 699 | 1/2" | 13 | -8 | M22x1,5 | 15 | 27 | DKOL 45 DN12 M22x1,5 |
| 1826 | 1/2" | 13 | -8 | M26x1,5 | 18 | 32 | DKOL 45 DN12 M26x1,5 |
| 700 | 5/8" | 16 | -10 | M26x1,5 | 18 | 32 | DKOL 45 DN16 M26x1,5 |
| 8435 | 5/8" | 16 | -10 | M27x1,5 | 18 | 32 | DKOL 45 DN16 M27x1,5 |
| 8436 | 5/8" | 16 | -10 | M27x2 | 18 | 32 | DKOL 45 DN16 M27x2 |
| 3534 | 3/4" | 19 | -12 | M30x1,5 | 22 | 36 | DKOL 45 DN20 M30x1,5 |
| 701 | 3/4" | 19 | -12 | M30x2 | 22 | 36 | DKOL 45 DN20 M30x2 |
| 702 | 1" | 25 | -16 | M36x2 | 28 | 41 | DKOL 45 DN25 M36x2 |
| 01142539 | 1" | 25 | -16 | M39x1,5 | 28 | 46 | DKOL 45 DN25 M39x1,5 |
| 703 | 1 1/4" | 32 | -20 | M45x2 | 35 | 50 | DKOL 45 DN32 M45x2 |
| 704 | 1 1/2" | 38 | -24 | M52x2 | 42 | 60 | DKOL 45 DN40 M52x2 |
