hydrauliky
pneumatiky
mazania

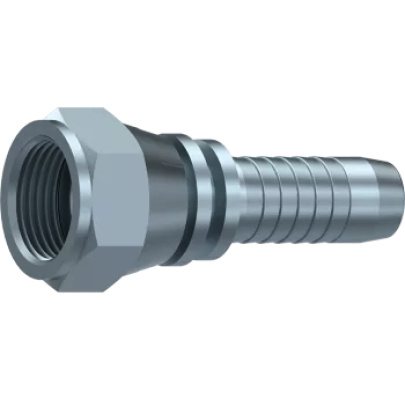

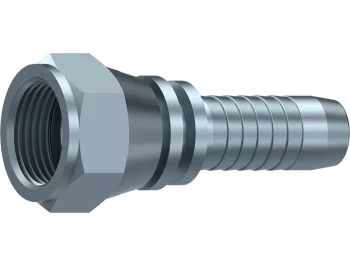

DKJ priame, JIC zavit vnutorny 74 kuzel, SAE J516/J514
DKJ straight, JIC female thread 74 cone seat, SAE J516/J514
| 0300 DKJ | Hadica / Hose | Zavit | Kluc E | Oznacenie | ||
| Kod/Code | inch | DN | Size | Thread | Hex E | Description |
| 03000503 | 3/16 | 05 | -3 | 7/16-20 | 12 | DKJ DN05 7/16-20 |
| 795 | 1/4" | 6 | -4 | 7/16-20 | 12 | DKJ DN06 7/16-20 |
| 1722 | 1/4" | 6 | -4 | 1/2-20 | 14 | DKJ DN06 1/2-20 |
| 1723 | 1/4" | 6 | -4 | 9/16-18 | 17 | DKJ DN06 9/16-18 |
| 796 | 5/16" | 8 | -5 | 1/2-20 | 14 | DKJ DN08 1/2-20 |
| 1724 | 5/16" | 8 | -5 | 9/16-18 | 17 | DKJ DN08 9/16-18 |
| 03000820 | 5/16" | 8 | -5 | 3/4-16 | 19 | DKJ DN08 3/4-16 |
| 798 | 3/8" | 10 | -6 | 9/16-18 | 17 | DKJ DN10 9/16-18 |
| 797 | 3/8" | 10 | -6 | 3/4-16 | 19 | DKJ DN10 3/4-16 |
| 1728 | 3/8" | 10 | -6 | 7/8-14 | 24 | DKJ DN10 7/8-14 |
| 800 | 1/2" | 13 | -8 | 3/4-16 | 19 | DKJ DN13 3/4-16 |
| 799 | 1/2" | 13 | -8 | 7/8-14 | 24 | DKJ DN13 7/8-14 |
| 1729 | 1/2" | 13 | -8 | 1" 1/16-12 | 27 | DKJ DN13 1 1/16-12 |
| 801 | 5/8" | 16 | -10 | 7/8-14 | 24 | DKJ DN16 7/8-14 |
| 1730 | 5/8" | 16 | -10 | 1" 1/16-12 | 27 | DKJ DN16 1 1/16-12 |
| 802 | 3/4" | 20 | -12 | 1" 1/16-12 | 27 | DKJ DN20 1 1/16-12 |
| 03002021 | 3/4" | 20 | -12 | 1" 3/16-12 | 32 | DKJ DN20 1 3/16-12 |
| 1733 | 3/4" | 20 | -12 | 1" 5/16-12 | 41 | DKJ DN20 1 5/16-12 |
| 803 | 1" | 25 | -16 | 1" 5/16-12 | 41 | DKJ DN25 1 5/16-12 |
| 03002527 | 1" | 25 | -16 | 1" 5/8-12 | 42 | DKJ DN25 1 5/8-12 |
| 804 | 1 1/4" | 32 | -20 | 1" 5/8-12 | 42 | DKJ DN32 1 5/8-12 |
| 1737 | 1 1/2" | 40 | -24 | 1" 7/8-12 | 50 | DKJ DN40 1 7/8-12 |
| 1738 | 2" | 50 | -32 | 2" 1/2-12 | 60 | DKJ DN50 2 1/2-12 |
