DKOS45

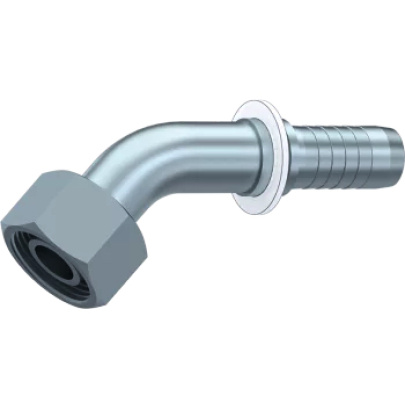

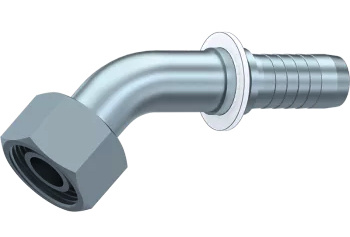

hydraulicka koncovka DKOS45, Hydraulicka koncovka DKOS45
- Kód produktu: DKOS45
DKOS 45 koleno, metricky zavit vnutorny 24 kuzel, tazka rada
DKOS 45 elbow,female metric 24 cone seat, heavy series H.T.
| 0124 DKOS45 | Hadica / Hose | Zavit | TR DIN | Kluc E | Oznacenie | ||
| Kod/Code | inch | DN | Size | Thread | DIN PIPE | Hex E | Description |
| 1864 | 1/4" | 6 | -4 | M14x1,5 | 6 | 17 | DKOS 45 DN06 M14x1,5 |
| 1865 | 1/4" | 6 | -4 | M16x1,5 | 8 | 19 | DKOS 45 DN06 M16x1,5 |
| 727 | 1/4" | 6 | -4 | M18x1,5 | 10 | 22 | DKOS 45 DN06 M18x1,5 |
| 1866 | 1/4" | 6 | -4 | M20x1,5 | 12 | 24 | DKOS 45 DN06 M20x1,5 |
| 1867 | 5/16" | 8 | -5 | M18x1,5 | 10 | 22 | DKOS 45 DN08 M18x1,5 |
| 728 | 5/16" | 8 | -5 | M20x1,5 | 12 | 24 | DKOS 45 DN08 M20x1,5 |
| 1868 | 3/8" | 10 | -6 | M18x1,5 | 10 | 22 | DKOS 45 DN10 M18x1,5 |
| 729 | 3/8" | 10 | -6 | M20x1,5 | 12 | 24 | DKOS 45 DN10 M20x1,5 |
| 1869 | 3/8" | 10 | -6 | M22x1,5 | 14 | 27 | DKOS 45 DN10 M22x1,5 |
| 1870 | 1/2" | 13 | -8 | M22x1,5 | 14 | 27 | DKOS 45 DN12 M22x1,5 |
| 730 | 1/2" | 13 | -8 | M24x1,5 | 16 | 30 | DKOS 45 DN12 M24x1,5 |
| 731 | 5/8" | 16 | -10 | M30x2 | 20 | 36 | DKOS 45 DN16 M30x2 |
| 1871 | 3/4" | 19 | -12 | M30x2 | 20 | 36 | DKOS 45 DN20 M30x2 |
| 732 | 3/4" | 19 | -12 | M36x2 | 25 | 46 | DKOS 45 DN20 M36x2 |
| 1872 | 1" | 25 | -16 | M36x2 | 25 | 46 | DKOS 45 DN25 M36x2 |
| 733 | 1" | 25 | -16 | M42x2 | 30 | 50 | DKOS 45 DN25 M42x2 |
| 1873 | 1 1/4" | 32 | -20 | M42x2 | 30 | 50 | DKOS 45 DN32 M42x2 |
| 734 | 1 1/4" | 32 | -20 | M52x2 | 38 | 60 | DKOS 45 DN32 M52x2 |
| 1874 | 1 1/2" | 38 | -24 | M52x2 | 38 | 60 | DKOS 45 DN40 M52x2 |
