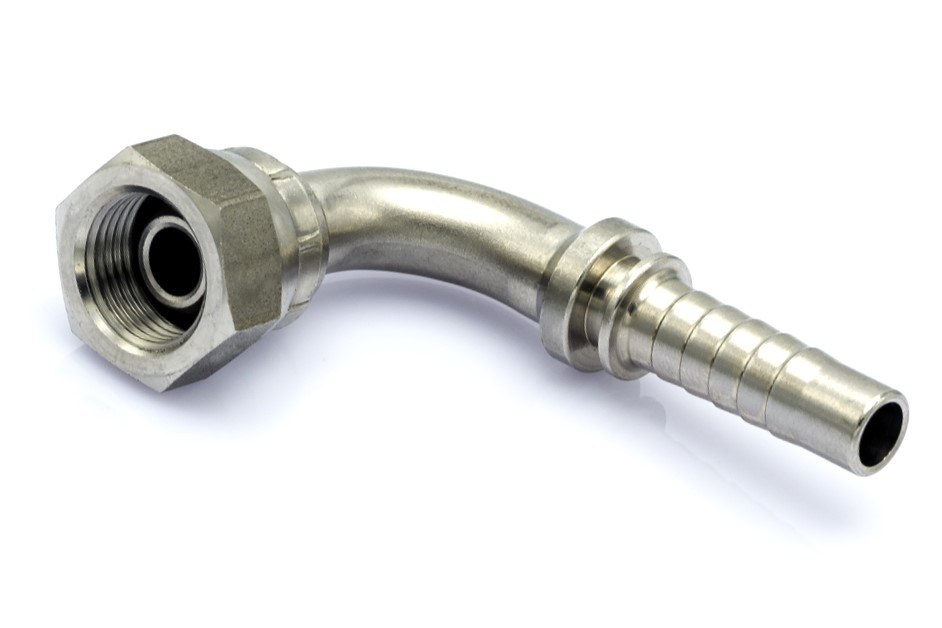

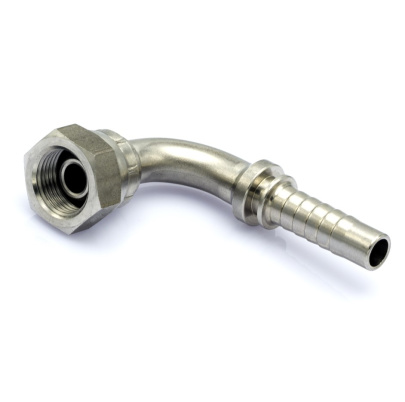

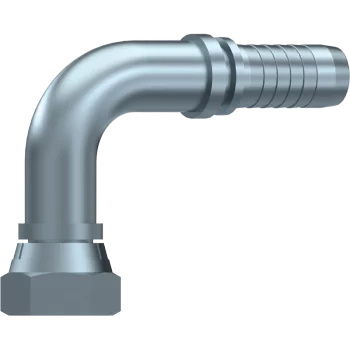

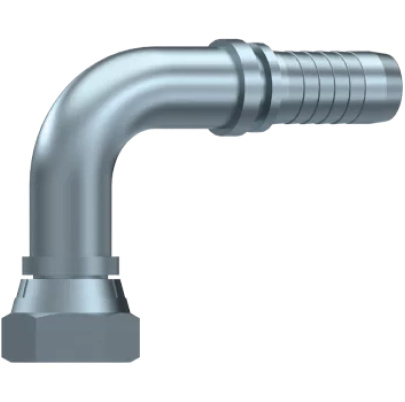

hydraulicka koncovka DKR90, Hydraulicka koncovka DKR90
- Kód produktu: DKR90
DKR 90, koleno, BSP zavit vnutorny 60 kuzel, BS 5200
DKR 90, elbow, BSP thread female 60 cone seat, BS 5200
| 0209 DKR90 | Hadica / Hose | Zavit | Kluc E | Oznacenie | ||
| Kod/Code | inch | DN | Size | Thread | Hex E | Description |
| 02090505 | 3/16 | 05 | -3 | G 1/8" | 14 | DKR 90 DN05 1/8 |
| 02090506 | 3/16 | 05 | -3 | G 1/4" | 19 | DKR 90 DN05 1/4 |
| 773 | 1/4 | 06 | -4 | G 1/8" | 14 | DKR 90 DN06 1/8 |
| 772 | 1/4 | 06 | -4 | G 1/4" | 19 | DKR 90 DN06 1/4 |
| 1658 | 1/4 | 06 | -4 | G 3/8" | 22 | DKR 90 DN06 3/8 |
| 1660 | 5/16 | 08 | -5 | G 1/4" | 19 | DKR 90 DN08 1/4 |
| 774 | 5/16 | 08 | -5 | G 3/8" | 22 | DKR 90 DN08 3/8 |
| 1661 | 5/16 | 08 | -5 | G 1/2" | 27 | DKR 90 DN08 1/2 |
| 1662 | 3/8 | 10 | -6 | G 1/4" | 19 | DKR 90 DN10 1/4 |
| 775 | 3/8 | 10 | -6 | G 3/8" | 22 | DKR 90 DN10 3/8 |
| 1663 | 3/8 | 10 | -6 | G 1/2" | 27 | DKR 90 DN10 1/2 |
| 1664 | 1/2 | 12 | -8 | G 3/8" | 22 | DKR 90 DN12 3/8 |
| 776 | 1/2 | 12 | -8 | G 1/2" | 27 | DKR 90 DN12 1/2 |
| 1665 | 1/2 | 12 | -8 | G 5/8" | 28 | DKR 90 DN12 5/8 |
| 1666 | 1/2 | 12 | -8 | G 3/4" | 32 | DKR 90 DN12 3/4 |
| 1667 | 5/8 | 16 | -10 | G 1/2" | 27 | DKR 90 DN16 1/2 |
| 777 | 5/8 | 16 | -10 | G 5/8" | 28 | DKR 90 DN16 5/8 |
| 1668 | 5/8 | 16 | -10 | G 3/4" | 32 | DKR 90 DN16 3/4 |
| 778 | 3/4 | 20 | -12 | G 3/4" | 32 | DKR 90 DN20 3/4 |
| 1671 | 3/4 | 20 | -12 | G 1" | 38 | DKR 90 DN20 1 |
| 779 | 1 | 25 | -16 | G 1" | 38 | DKR 90 DN25 1 |
| 1673 | 1 | 25 | -16 | G 1" 1/4 | 50 | DKR 90 DN25 1 1/4 |
| 1674 | 1 1/4 | 32 | -20 | G 1" 1/4 | 50 | DKR 90 DN32 1 1/4 |
| 1675 | 1 1/4 | 32 | -20 | G 1" 1/2 | 55 | DKR 90 DN32 1 1/2 |
| 1676 | 1 1/2 | 40 | -24 | G 1" 1/2 | 55 | DKR 90 DN40 1 1/2 |
| 02094050 | 1 1/2 | 40 | -24 | G 2" | 70 | DKR 90 DN40 2 |
| 2426 | 2 | 50 | -32 | G 2" | 70 | DKR 90 DN50 2 |
