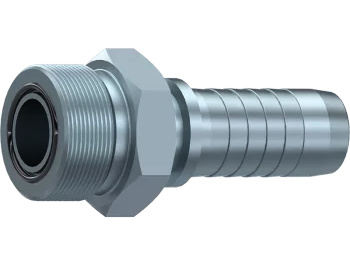

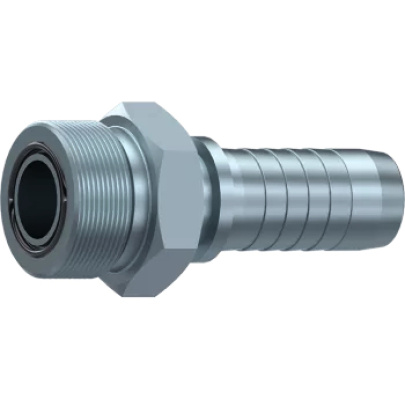

ORS priame, vonkajsi zavit, SAE J1453
ORS straight, male thread, SAE J1453
| 0403 ORS | Hadica / Hose | Zavit | Kluc E | Oznacenie | ||
| Kod/Code | inch | mm | Size | Thread | Hex E | Description |
| 1875 | 1/4" | 6 | -4 | 9/16-18 | 17 | ORS DN 06 9/16-18 |
| 1876 | 1/4" | 6 | -4 | 11/16-16 | 19 | ORS DN 06 11/16-16 |
| 1877 | 5/16" | 8 | -5 | 11/16-16 | 19 | ORS DN 08 11/16-16 |
| 905 | 3/8" | 10 | -6 | 11/16-16 | 19 | ORS DN 10 11/16-16 |
| 1878 | 3/8" | 10 | -6 | 13/16-16 | 22 | ORS DN 10 13/16-16 |
| 906 | 1/2" | 12 | -8 | 13/16-16 | 22 | ORS DN 12 13/16-16 |
| 907 | 1/2" | 12 | -8 | 1"-14 | 27 | ORS DN 12 1-14 |
| 1880 | 1/2" | 12 | -8 | 1" 3/16-12 | 32 | ORS DN 12 1" 3/16-12 |
| 908 | 5/8" | 16 | -10 | 1"-14 | 27 | ORS DN 16 1-14 |
| 909 | 5/8" | 16 | -10 | 1" 3/16-12 | 32 | ORS DN 16 1" 3/16-12 |
| 910 | 3/4" | 20 | -12 | 1" 3/16-12 | 32 | ORS DN 20 1" 3/16-12 |
| 911 | 3/4" | 20 | -12 | 1" 7/16-12 | 41 | ORS DN 20 1" 7/16-12 |
| 912 | 1" | 25 | -16 | 1" 7/16-12 | 41 | ORS DN 25 1" 7/16-12 |
| 1881 | 1 1/4" | 32 | -20 | 1" 11/16-12 | 46 | ORS DN 32 1" 11/16-12 |
| 1882 | 1 1/2" | 40 | -24 | 2"-12 | 55 | ORS DN 40 2-12 |
