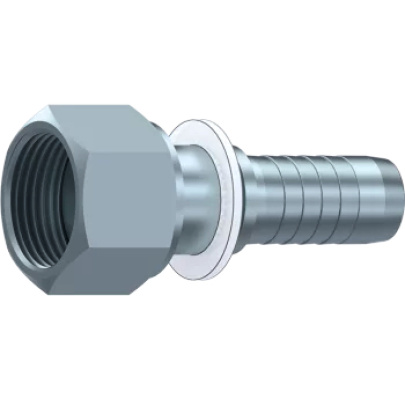

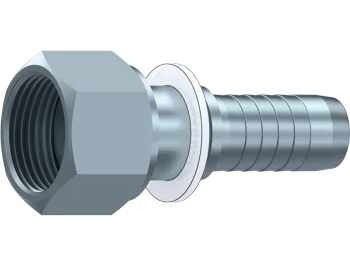

ORFS priame, vnutorny zavit, SAE J516/J1453
ORFS straight, female thread, SAE J516/J1453
| 0400 ORFS | Hadica / Hose | Zavit | Kluc E | Oznacenie | ||
| Kod/Code | inch | mm | Size | Thread | Hex E | Description |
| 881 | 1/4" | 6 | -4 | 9/16-18 | 17 | ORFS DN 06 9/16-18 |
| 1884 | 1/4" | 6 | -4 | 11/16-16 | 22 | ORFS DN 06 11/16-16 |
| 884 | 5/16" | 8 | -5 | 11/16-16 | 22 | ORFS DN 08 11/16-16 |
| 887 | 3/8" | 10 | -6 | 11/16-16 | 22 | ORFS DN 10 11/16-16 |
| 890 | 3/8" | 10 | -6 | 13/16-16 | 24 | ORFS DN 10 13/16-16 |
| 891 | 1/2" | 12 | -8 | 13/16-16 | 24 | ORFS DN 12 13/16-16 |
| 895 | 1/2" | 12 | -8 | 1"-14 | 30 | ORFS DN 12 1-14 |
| 1885 | 1/2" | 12 | -8 | 1" 3/16-12 | 36 | ORFS DN 12 1" 3/16-12 |
| 897 | 5/8" | 16 | -10 | 1"-14 | 30 | ORFS DN 16 1-14 |
| 1886 | 5/8" | 16 | -10 | 1" 3/16-12 | 36 | ORFS DN 16 1" 3/16-12 |
| 04002018 | 3/4" | 20 | -12 | 1"-14 | 30 | ORFS DN 20 1-14 |
| 900 | 3/4" | 20 | -12 | 1" 3/16-12 | 36 | ORFS DN 20 1" 3/16-12 |
| 901 | 3/4" | 20 | -12 | 1" 7/16-12 | 41 | ORFS DN 20 1" 7/16-12 |
| 2242 | 1" | 25 | -16 | 1" 3/16-12 | 36 | ORFS DN 25 1" 3/16-12 |
| 902 | 1" | 25 | -16 | 1" 7/16-12 | 41 | ORFS DN 25 1" 7/16-12 |
| 1887 | 1 1/4" | 32 | -20 | 1" 11/16-12 | 50 | ORFS DN 32 1" 11/16-12 |
| 1888 | 1 1/2" | 40 | -24 | 2"-12 | 60 | ORFS DN 40 2-12 |
