ORFS45
hydraulicka koncovka ORFS45, Hydraulicka koncovka ORFS45
- Kód produktu: ORFS45

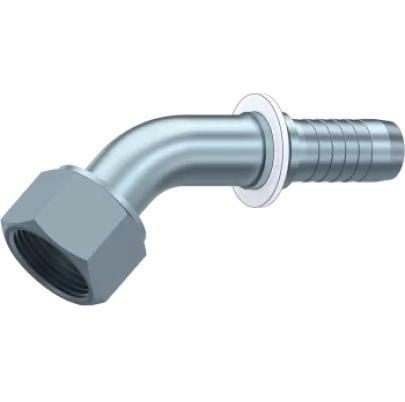

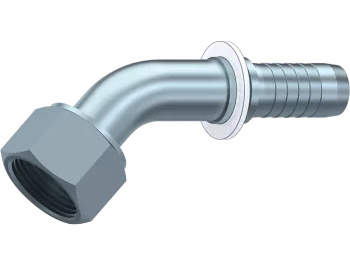

ORFS 45 koleno, vnutorny zavit, SAE J516/J1453
ORFS 45 elbow, female thread, SAE J516/J1453
| 0404 ORFS45 | Hadica / Hose | Zavit | Kluc E | Oznacenie | ||
| Kod/Code | inch | mm | Size | Thread | Hex E | Description |
| 882 | 1/4" | 6 | -4 | 9/16-18 | 17 | ORFS45 DN 06 9/16-18 |
| 1897 | 1/4" | 6 | -4 | 11/16-16 | 22 | ORFS45 DN 06 11/16-16 |
| 885 | 5/16" | 8 | -5 | 11/16-16 | 22 | ORFS45 DN 08 11/16-16 |
| 888 | 3/8" | 10 | -6 | 11/16-16 | 22 | ORFS45 DN 10 11/16-16 |
| 1898 | 3/8" | 10 | -6 | 13/16-16 | 24 | ORFS45 DN 10 13/16-16 |
| 892 | 1/2" | 12 | -8 | 13/16-16 | 24 | ORFS45 DN 12 13/16-16 |
| 1899 | 1/2" | 12 | -8 | 1"-14 | 30 | ORFS45 DN 12 1-14 |
| 1900 | 1/2" | 12 | -8 | 1" 3/16-12 | 36 | ORFS45 DN 12 1" 3/16-12 |
| 898 | 5/8" | 16 | -10 | 1"-14 | 30 | ORFS45 DN 16 1-14 |
| 1901 | 5/8" | 16 | -10 | 1" 3/16-12 | 36 | ORFS45 DN 16 1" 3/16-12 |
| 04042018 | 3/4" | 20 | -12 | 1"-14 | 30 | ORFS45 DN 20 1-14 |
| 1902 | 3/4" | 20 | -12 | 1" 3/16-12 | 36 | ORFS45 DN 20 1" 3/16-12 |
| 1903 | 3/4" | 20 | -12 | 1" 7/16-12 | 41 | ORFS45 DN 20 1" 7/16-12 |
| 1403 | 1" | 25 | -16 | 1" 3/16-12 | 36 | ORFS45 DN 25 1" 3/16-12 |
| 903 | 1" | 25 | -16 | 1" 7/16-12 | 41 | ORFS45 DN 25 1" 7/16-12 |
| 1904 | 1 1/4" | 32 | -20 | 1" 11/16-12 | 50 | ORFS45 DN 32 1" 11/16-12 |
| 1905 | 1 1/2" | 40 | -24 | 2"-12 | 60 | ORFS45 DN 40 2-12 |
