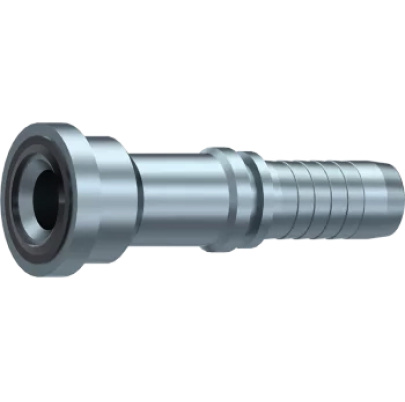

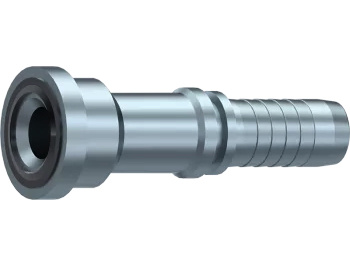

SFL, priama priruba 3000psi, SAE J518, code 61
SFL, straight flange 3000psi, SAE J518, code 61
| 0500 SFL | Hadica / Hose | D | Flange | Oznacenie | ||
| Kod/Code | inch | mm | Size | mm | Priruba | Description |
| 850 | 1/2 | 12 | -8 | 30,2 | 1/2" | SFL DN12 1/2 D=30,2 |
| 1907 | 1/2 | 12 | -8 | 38,1 | 3/4" | SFL DN12 3/4 D=38,1 |
| 851 | 5/8 | 16 | -10 | 38,1 | 3/4" | SFL DN16 3/4 D=38,1 |
| 852 | 3/4 | 20 | -12 | 38,1 | 3/4" | SFL DN20 3/4 D=38,1 |
| 1911 | 3/4 | 20 | -12 | 44,5 | 1" | SFL DN20 1 D=44,5 |
| 853 | 1 | 25 | -16 | 44,5 | 1" | SFL DN25 1 D=44,5 |
| 854 | 1 | 25 | -16 | 51 1 | 1/4" | SFL DN25 1 1/4 D=51 |
| 855 | 1 1 /4 | 32 | -20 | 51 | 1 1/4" | SFL DN32 1 1/4 D=51 |
| 1914 | 1 1/4 | 32 | -20 | 60,3 | 1 1/2" | SFL DN32 1 1/2 D=60,3 |
| 1915 | 1 1/2 | 40 | -24 | 60,3 | 1 1/2" | SFL DN40 1 1/2 D=60,3 |
| 1916 | 1 1/2 | 40 | -24 | 71,4 | 2" | SFL DN40 2 D=71,4 |
| 1917 | 2 | 50 | -32 | 71,4 | 2" | SFL DN50 2 D=71,4 |
| 05005060 | 2 | 50 | -32 | 84,3 | 2 1/2" | SFL DN50 2 1/2 D=84,3 |
| 05006060 | 2 3/8 | 60 | -38 | 84,3 | 2 1/2" | SFL DN60 2 1/2 D=84,3 |
| 05006360 | 2 1/2 | 63 | -40 | 84,3 | 2 1/2" | SFL DN63 2 1/2 D=84,3 |
| 05007676 | 3 | 76 | -48 | 101,6 | 3" | SFL DN76 3 D=101,6 |
