SFL45

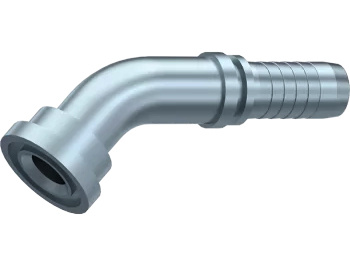

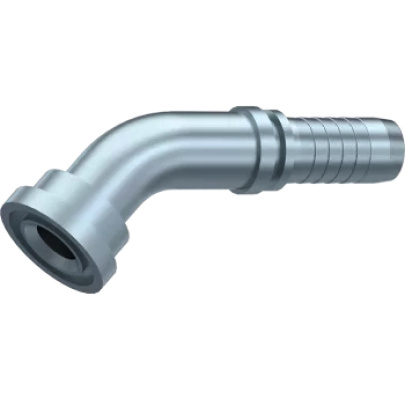

hydraulicka koncovka SFL45, Hydraulicka koncovka SFL45
- Kód produktu: SFL45
SFL 45 koleno 3000psi, SAE J518, code 61
SFL 45 elbow 3000psi, SAE J518 code 61
| 0504 SFL45 | Hadica / Hose | D | Flange | Oznacenie | ||
| Kod/Code | inch | mm | Size | mm | Priruba | Description |
| 856 | 1/2 | 12 | -8 | 30,2 | 1/2" | SFL45 DN12 1/2 D=30,2 |
| 1929 | 1/2 | 12 | -8 | 38,1 | 3/4" | SFL45 DN12 3/4 D=38,1 |
| 857 | 5/8 | 16 | -10 | 38,1 | 3/4" | SFL45 DN16 3/4 D=38,1 |
| 858 | 3/4 | 20 | -12 | 38,1 | 3/4" | SFL45 DN20 3/4 D=38,1 |
| 1932 | 3/4 | 20 | -12 | 44,5 | 1" | SFL45 DN20 1 D=44,5 |
| 859 | 1 | 25 | -16 | 44,5 | 1" | SFL45 DN25 1 D=44,5 |
| 860 | 1 | 25 | -16 | 51 1 | 1/4" | SFL45 DN25 1 1/4 D=51 |
| 861 | 1 1 /4 | 32 | -20 | 51 | 1 1/4" | SFL45 DN32 1 1/4 D=51 |
| 1935 | 1 1/4 | 32 | -20 | 60,3 | 1 1/2" | SFL45 DN32 1 1/2 D=60,3 |
| 1936 | 1 1/2 | 40 | -24 | 60,3 | 1 1/2" | SFL45 DN40 1 1/2 D=60,3 |
| 1937 | 1 1/2 | 40 | -24 | 71,4 | 2" | SFL45 DN40 2 D=71,4 |
| 1938 | 2 | 50 | -32 | 71,4 | 2" | SFL45 DN50 2 D=71,4 |
| 05045060 | 2 | 50 | -32 | 84,3 | 2 1/2" | SFL45 DN50 2 1/2 D=84,3 |
| 05046060 | 2 3/8 | 60 | -38 | 84,3 | 2 1/2" | SFL45 DN60 2 1/2 D=84,3 |
| 05046360 | 2 1/2 | 63 | -40 | 84,3 | 2 1/2" | SFL45 DN63 2 1/2 D=84,3 |
| 05047676 | 3 | 76 | -48 | 101,6 | 3" | SFL45 DN76 3 D=101,6 |
