SFL90

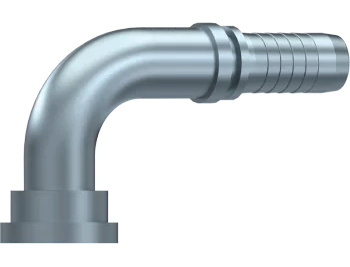

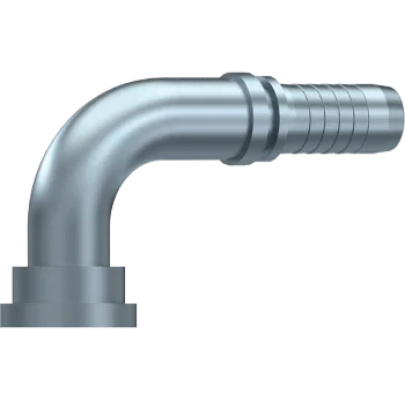

hydraulicka koncovka SFL90, Hydraulicka koncovka SFL90
- Kód produktu: SFL90
SFL 90 koleno 3000psi, SAE J518, code 61
SFL 90 elbow 3000psi, SAE J518 code 61
| 0509 SFL90 | Hadica / Hose | D | Flange | Oznacenie | ||
| Kod/Code | inch | mm | Size | mm | Priruba | Description |
| 862 | 1/2 | 12 | -8 | 30,2 | 1/2" | SFL90 DN12 1/2 D=30,2 |
| 1918 | 1/2 | 12 | -8 | 38,1 | 3/4" | SFL90 DN12 3/4 D=38,1 |
| 863 | 5/8 | 16 | -10 | 38,1 | 3/4" | SFL90 DN16 3/4 D=38,1 |
| 864 | 3/4 | 20 | -12 | 38,1 | 3/4" | SFL90 DN20 3/4 D=38,1 |
| 1922 | 3/4 | 20 | -12 | 44,5 | 1" | SFL90 DN20 1 D=44,5 |
| 865 | 1 | 25 | -16 | 44,5 | 1" | SFL90 DN25 1 D=44,5 |
| 1923 | 1 | 25 | -16 | 51 1 | 1/4" | SFL90 DN25 1 1/4 D=51 |
| 866 | 1 1 /4 | 32 | -20 | 51 | 1 1/4" | SFL90 DN32 1 1/4 D=51 |
| 1925 | 1 1/4 | 32 | -20 | 60,3 | 1 1/2" | SFL90 DN32 1 1/2 D=60,3 |
| 1926 | 1 1/2 | 40 | -24 | 60,3 | 1 1/2" | SFL90 DN40 1 1/2 D=60,3 |
| 1927 | 1 1/2 | 40 | -24 | 71,4 | 2" | SFL90 DN40 2 D=71,4 |
| 1928 | 2 | 50 | -32 | 71,4 | 2" | SFL90 DN50 2 D=71,4 |
| 05095060 | 2 | 50 | -32 | 84,3 | 2 1/2" | SFL90 DN50 2 1/2 D=84,3 |
| 05096060 | 2 3/8 | 60 | -38 | 84,3 | 2 1/2" | SFL90 DN60 2 1/2 D=84,3 |
| 05096360 | 2 1/2 | 63 | -40 | 84,3 | 2 1/2" | SFL90 DN63 2 1/2 D=84,3 |
| 05097676 | 3 | 76 | -48 | 101,6 | 3" | SFL90 DN76 3 D=101,6 |
