SFS45

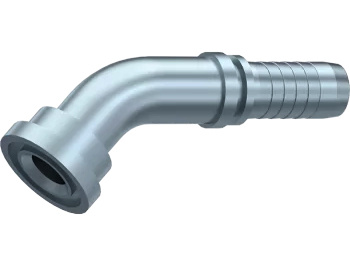

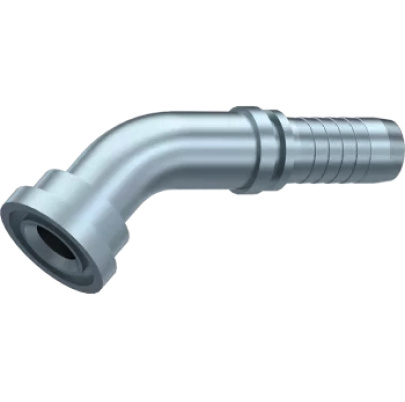

hydraulicka koncovka SFS45, Hydraulicka koncovka SFS45
- Kód produktu: SFS45
SFS 45 koleno 6000psi, SAE J518, code 62
SFS 45 elbow 6000psi, SAE J518 code 62
| 0524 SFS45 | Hadica / Hose | D | Flange | Oznacenie | ||
| Kod/Code | inch | mm | Size | mm | Priruba | Description |
| 837 | 1/2 | 12 | -8 | 31,8 | 1/2" | SFS45 DN12 1/2 D=31,7 |
| 1957 | 1/2 | 12 | -8 | 41,5 | 3/4" | SFS45 DN12 3/4 D=41,5 |
| 05241612 | 5/8 | 16 | -10 | 31,8 | 1/2" | SFS45 DN16 1/2 D=31,8 |
| 838 | 5/8 | 16 | -10 | 41,5 | 3/4" | SFS45 DN16 3/4 D=41,5 |
| 839 | 3/4 | 20 | -12 | 41,5 | 3/4" | SFS45 DN20 3/4 D=41,5 |
| 1960 | 3/4 | 20 | -12 | 47,6 | 1" | SFS45 DN20 1 D=47,6 |
| 840 | 1 | 25 | -16 | 47,6 | 1" | SFS45 DN25 1 D=47,6 |
| 841 | 1 | 25 | -16 | 54 | 1 1/4" | SFS45 DN25 1 1/4 D=54 |
| 842 | 1 1 /4 | 32 | -20 | 54 | 1 1/4" | SFS45 DN32 1 1/4 D=54 |
| 1963 | 1 1/4 | 32 | -20 | 63,5 | 1 1/2" | SFS45 DN32 1 1/2 D=63,5 |
| 1964 | 1 1/2 | 40 | -24 | 63,5 | 1 1/2" | SFS45 DN40 1 1/2 D=63,5 |
| 1965 | 1 1/2 | 40 | -24 | 79,4 | 2" | SFS45 DN40 2 D=79,4 |
| 2428 | 2 | 50 | -32 | 79,4 | 2" | SFS45 DN50 2 D=79,4 |
