Neorezové objimky 1SN
neorezová objímka 1SN, neorezova objimka 1SN, neorezová objímka 1sn, neorezova objimka 1sn, neorezové objímky 1SN, neorezove objimky 1SN, neorezové objimky 1sn, neorezove objimky 1sn
- Kód produktu: Objimka1SN
Objimka pre neorezované hadice DIN EN 853 1SN, SAE 100 R1T
No skive ferrule for DIN EN 853 1SN, SAE 100 R1T

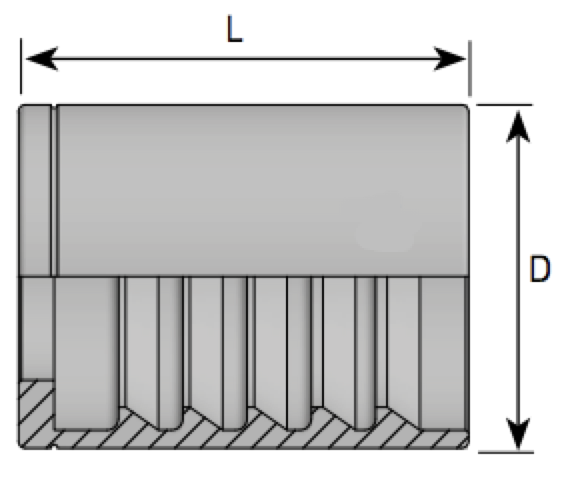

| Kod | Hadica / Hose | D | L | Označenie | ||
| Code | inch | mm | Size | mm | mm | Description |
| 640 | 1/4 | 6 | -4 | 20 | 30 | OB 1SB DN06 |
| 641 | 5/16 | 8 | -5 | 22 | 30,5 | OB 1SB DN08 |
| 642 | 3/8 | 10 | -6 | 24 | 32 | OB 1SB DN10 |
| 643 | 1/2 | 13 | -8 | 29 | 34 | OB 1SB DN13 |
| 644 | 5/8 | 16 | -10 | 32 | 37 | OB 1SB DN16 |
| 645 | 3/4 | 19 | -12 | 36 | 42,5 | OB 1SB DN20 |
| 646 | 1 | 25 | -16 | 43 | 50,5 | OB 1SB DN25 |
| 647 | 1 1/4 | 32 | -20 | 53 | 59 | OB 1SB DN32 |
