DKL45

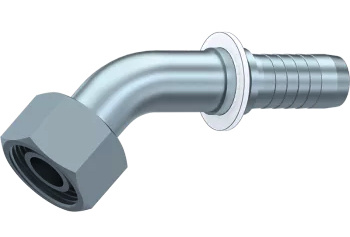

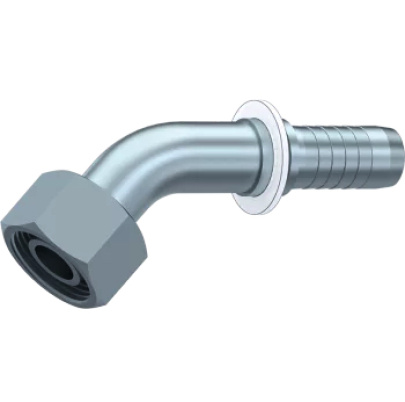

hydraulicka koncovka DKL45, Hydraulicka koncovka DKL45
- Kód produktu: DKL45
DKL45, metricky zavit vnutorny 24 kuzel, lahka rada, priama
DKL45, female metric 24 cone seat, light series L.T., straight
| 0104 DKL45 | Hadica / Hose | Zavit | TR DIN | Kluc E | Oznacenie | ||
| Kod/Code | inch | DN | Size | Thread | DIN PIPE | Hex E | Description |
| 8830 | 1/4" | 6 | -4 | M12x1,5 | 6 | 14 | DKL45 DN06 M12x1,5 |
| 8831 | 1/4" | 6 | -4 | M14x1,5 | 8 | 17 | DKL45 DN06 M14x1,5 |
| 8832 | 1/4" | 6 | -4 | M16x1,5 | 10 | 19 | DKL45 DN06 M16x1,5 |
| 8833 | 1/4" | 6 | -4 | M18x1,5 | 12 | 22 | DKL45 DN06 M18x1,5 |
| 8829 | 5/16" | 8 | -5 | M16x1,5 | 10 | 19 | DKL45 DN08 M16x1,5 |
| 8929 | 5/16" | 8 | -5 | M18x1,5 | 12 | 22 | DKL45 DN08 M18x1,5 |
| 01041016 | 3/8" | 10 | -6 | M16x1,5 | 10 | 19 | DKL45 DN10 M16x1,5 |
| 8828 | 3/8" | 10 | -6 | M18x1,5 | 12 | 22 | DKL45 DN10 M18x1,5 |
| 01041022 | 3/8" | 10 | -6 | M22x1,5 | 15 | 27 | DKL45 DN10 M22x1,5 |
| 8389 | 1/2" | 13 | -8 | M22x1,5 | 15 | 27 | DKL45 DN12 M22x1,5 |
| 01041226 | 1/2" | 13 | -8 | M26x1,6 | 18 | 32 | DKL45 DN12 M26x1,5 |
| 6793 | 5/8" | 16 | -10 | M26x1,5 | 18 | 32 | DKL45 DN16 M26x1,5 |
| 8065 | 5/8" | 16 | -10 | M27x1,5 | 18 | 32 | DKL45 DN16 M27x1,5 |
| 8066 | 5/8" | 16 | -10 | M27x2 | 18 | 32 | DKL45 DN16 M27x2 |
| 8067 | 3/4" | 19 | -12 | M30x1,5 | 22 | 36 | DKL45 DN20 M30x1,5 |
| 8068 | 3/4" | 19 | -12 | M30x2 | 22 | 36 | DKL45 DN20 M30x2 |
| 01042033 | 3/4" | 19 | -12 | M33x1,5 | 28 | 41 | DKL45 DN20 M33x1,5 |
| 010420332 | 3/4" | 19 | -12 | M33x2 | 22 | 41 | DKL45 DN20 M33x2 |
| 8069 | 1" | 25 | -16 | M36x2 | 28 | 41 | DKL45 DN25 M36x2 |
| 01042539 | 1" | 25 | -16 | M39x1,5 | 28 | 46 | DKL45 DN25 M39x1,5 |
| 8707 | 1 1/4" | 32 | -20 | M45x2 | 35 | 50 | DKL45 DN32 M45x2 |
| 01044052 | 1 1/2" | 38 | -24 | M52x2 | 42 | 60 | DKL45 DN40 M52x2 |
