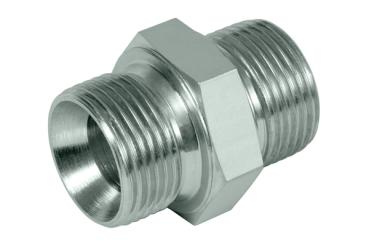

Hrdlo, Hadicova spojka BSP/BSP DIN SV60
Hrdlo, Hadicova spojka BSP/BSP DIN SV60
- Kód produktu: HBBZ

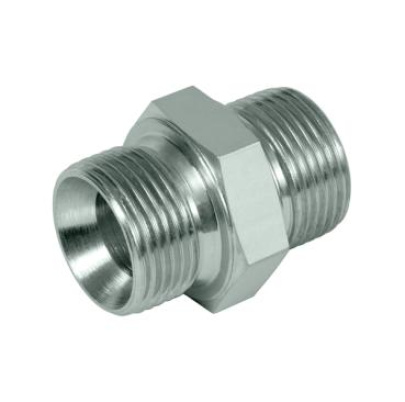

Hrdlo, Hadicova spojka BSP/BSP DIN SV60
Coupling, union BSP/BSP DIN SV60
| Kod/Code | F1 | F2 | L1 (mm) | L2 (mm) | H | L (mm) | Oznacenie/Description |
| 361 | 1/8 | 1/8 | 9,5 | 9,5 | 14 | 25 | Hrdlo, Hadicova spojka G1/8 / G1/8 |
| 1382 | 1/8 | 1/4 | 9,5 | 11 | 19 | 27,5 | Hrdlo, Hadicova spojka G1/8 / G1/4 |
| 362 | 1/4 | 1/4 | 11 | 11 | 19 | 19 | Hrdlo, Hadicova spojka G1/4 / G1/4 |
| 372 | 3/8 | 1/8 | 12,5 | 9,5 | 22 | 30 | Hrdlo, Hadicova spojka G3/8 / G1/8 |
| 2614 | 3/8 | 1/4 | 12,5 | 11 | 22 | 31,5 | Hrdlo, Hadicova spojka G3/8 / G1/4 |
| 363 | 3/8 | 3/8 | 12,5 | 12,5 | 22 | 34 | Hrdlo, Hadicova spojka G3/8 / G3/8 |
| 374 | 1/2 | 1/4 | 14 | 11 | 27 | 35 | Hrdlo, Hadicova spojka G1/2 / G1/4 |
| 375 | 1/2 | 3/8 | 14 | 12,5 | 27 | 36,5 | Hrdlo, Hadicova spojka G1/2 / G3/8 |
| 364 | 1/2 | 1/2 | 14 | 14 | 27 | 38 | Hrdlo, Hadicova spojka G1/2 / G1/2 |
| 366 | 5/8 | 5/8 | 16 | 16 | 30 | 42 | Hrdlo, Hadicova spojka G5/8 / G5/8 |
| 381 | 3/4 | 5/8 | 16 | 16 | 32 | 43,5 | Hrdlo, Hadicova spojka G5/8 / G3/4 |
| 379 | 3/4 | 3/8 | 16 | 12,5 | 32 | 38,5 | Hrdlo, Hadicova spojka G3/4 / G3/8 |
| 380 | 3/4 | 1/2 | 16 | 14 | 32 | 40 | Hrdlo, Hadicova spojka G3/4 / G1/2 |
| 366 | 3/4 | 3/4 | 16 | 16 | 32 | 42 | Hrdlo, Hadicova spojka G3/4 / G3/4 |
| 382 | 1 | 3/8 | 18 | 12,5 | 41 | 42,5 | Hrdlo, Hadicova spojka G1 / G3/8 |
| 383 | 1 | 1/2 | 18 | 14 | 41 | 44 | Hrdlo, Hadicova spojka G1 / G1/2 |
| 385 | 1 | 3/4 | 18 | 16 | 41 | 46 | Hrdlo, Hadicova spojka G1 / G3/4 |
| 367 | 1 | 1 | 18 | 18 | 41 | 48 | Hrdlo, Hadicova spojka G1 / G1 |
| 386 | 1 1/4 | 1/2 | 20 | 14 | 50 | 48,5 | Hrdlo, Hadicova spojka G1 1/4 / G1/2 |
| 2240 | 1 1/4 | 1 | 20 | 18 | 50 | 52,5 | Hrdlo, Hadicova spojka G1 1/4 / G1 |
| 368 | 1 1/4 | 1 1/4 | 20 | 20 | 50 | 54 | Hrdlo, Hadicova spojka G1 1/4 / G1 1/4 |
| 2830 | 1 1/4 | 2 | 25 | 20 | 70 | 60,5 | Hrdlo, Hadicova spojka G1 1/4 / G2 |
| 1384 | 1 1/4 | 1 1/2 | 20 | 22 | 55 | 57 | Hrdlo, Hadicova spojka G1 1/4 / G1 1/2 |
| 390 | 1 1/2 | 1 | 22 | 18 | 55 | 55 | Hrdlo, Hadicova spojka G1 1/2 / G1 |
| 369 | 1 1/2 | 1 1/2 | 21 | 21 | 55 | 57 | Hrdlo, Hadicova spojka G1 1/2 / G1 1/2 |
| 1392 | 1 1/2 | 2 | 25 | 21 | 70 | 63 | Hrdlo, Hadicova spojka G1 1/2 / G2 |
| 370 | 2 | 2 | 25 | 25 | 70 | 67 | Hrdlo, Hadicova spojka G2 / G2 |
