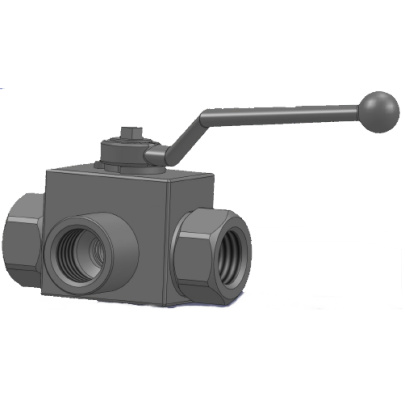

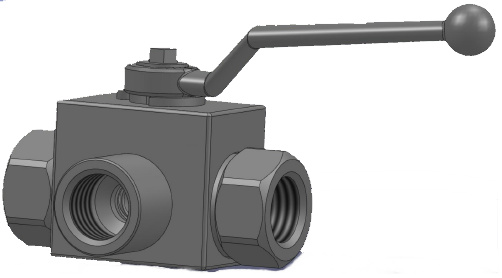

Hydraulicky 3 cestny L gulovy ventil BSP
Hydraulicky 3 cestny gulovy ventil BSP Hydraulic ball ventil 3-way BSP
- Kód produktu: HGV3G
Hydraulicky 3 cestny L gulovy ventil BSP
Hydraulic ball ventil 3-way BSP

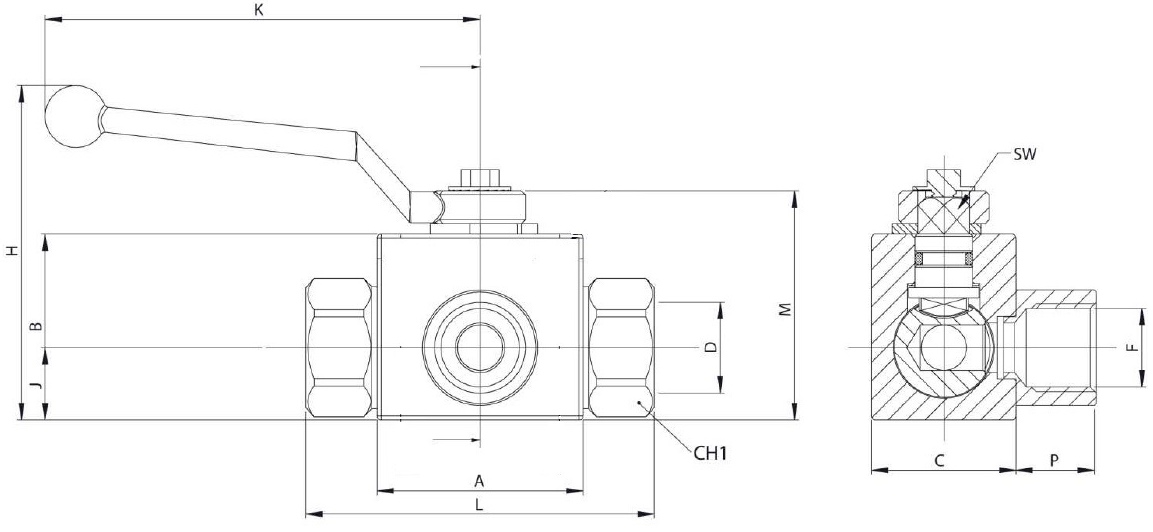

| Kod | Zavit D/F | CH1 (mm) | L (mm) | A (mm) | B (mm) | M (mm) | K (mm) | H (mm) | J (mm) | C (mm) | SW (mm) | P (mm) | Oznacenie |
| Code | Thread D/F | CH1 (mm) | L (mm) | A (mm) | B (mm) | M (mm) | K (mm) | H (mm) | J (mm) | C (mm) | SW (mm) | P (mm) | Description |
| 2095 | 1/4 | 22 | 72,6 | 40 | 35 | 45,5 | 105,5 | 71 | 13 | 26 | 8,9 | 13 | Hydraulicky 3 cestny gulovy ventil DN06 G1/4 500bar |
| 2096 | 3/8 | 27 | 75,4 | 45 | 40 | 50,5 | 105,5 | 76 | 16 | 32 | 8,9 | 15 | Hydraulicky 3 cestny gulovy ventil DN10 G3/8 500bar |
| 2097 | 1/2 | 30 | 84,5 | 50 | 45 | 55,5 | 105,5 | 81 | 17,5 | 35 | 8,9 | 19,5 | Hydraulicky 3 cestny gulovy ventil DN13 G1/2 500bar |
| 2098 | 3/4 | 41 | 93,4 | 60 | 60 | 73,0 | 159,5 | 108 | 23 | 50 | 13,9 | 19 | Hydraulicky 3 cestny gulovy ventil DN20 G3/4 400bar |
| 7366 | 1 | 46 | 114,5 | 65 | 65 | 80,0 | 159,5 | 115 | 27,5 | 57 | 13,9 | 25 | Hydraulicky 3 cestny gulovy ventil DN25 G1 350bar |
