Jednosmerny (spetny) ventil

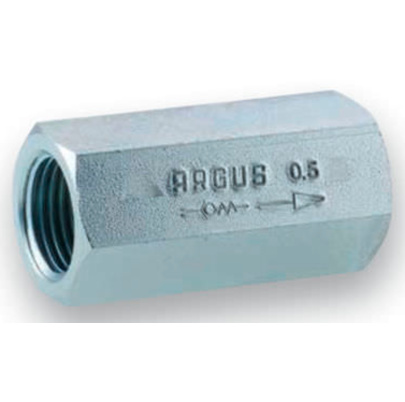

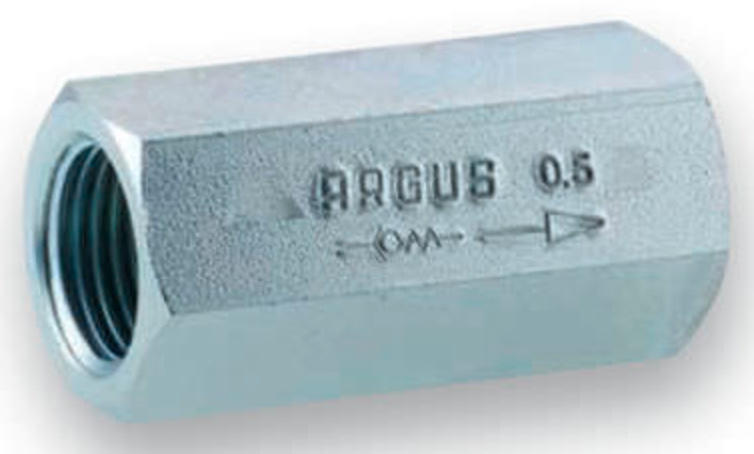

Jednosmerny (spetny) ventil ARGUS, non return valve ARGUS
- Kód produktu: JSVA
Jednosmerny (spetny) ventil
- ventil, ktory prepusta v jednom smere
- otvaraci tlak je 0,5 bar
- pracovna teplota - 30°C az 125 °C

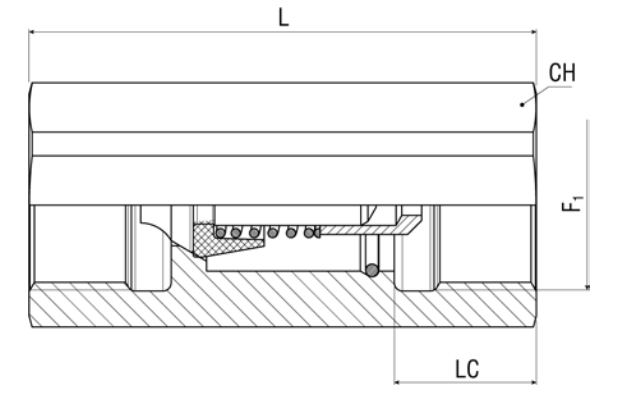

| Code | DN Inside I.D. | Working pressure | Opening pressure | F1 | CH | LC | L | ||
| DN vnútorný priemer | Pracovny tlak | Otvaraci tlak | F1 | CH | LC | L | |||
| mm | size | inch | bar | bar | mm | mm | mm | ||
| 10142 | 6 | -4 | 1/4 | 400 | 0,5 | 1/4 | 19,0 | 14,0 | 56,0 |
| 10143 | 10 | -6 | 3/8 | 400 | 0,5 | 3/8 | 22,0 | 14,0 | 67,0 |
| 10144 | 12 | -8 | 1/2 | 315 | 0,5 | 1/2 | 27,0 | 16,0 | 77,0 |
| 10145 | 19 | -12 | 3/4 | 250 | 0,5 | 3/4 | 36,0 | 16,0 | 90,0 |
| 10146 | 25 | -16 | 1 | 250 | 0,5 | 1 | 41,0 | 18,0 | 106,0 |
| 10147 | 32 | -20 | 1 1/4 | 250 | 0,5 | 1 1/4 | 55,0 | 125,0 | |
